HSD-04Z Series
Manufacturer: Adam Tech
Beta
⌘K

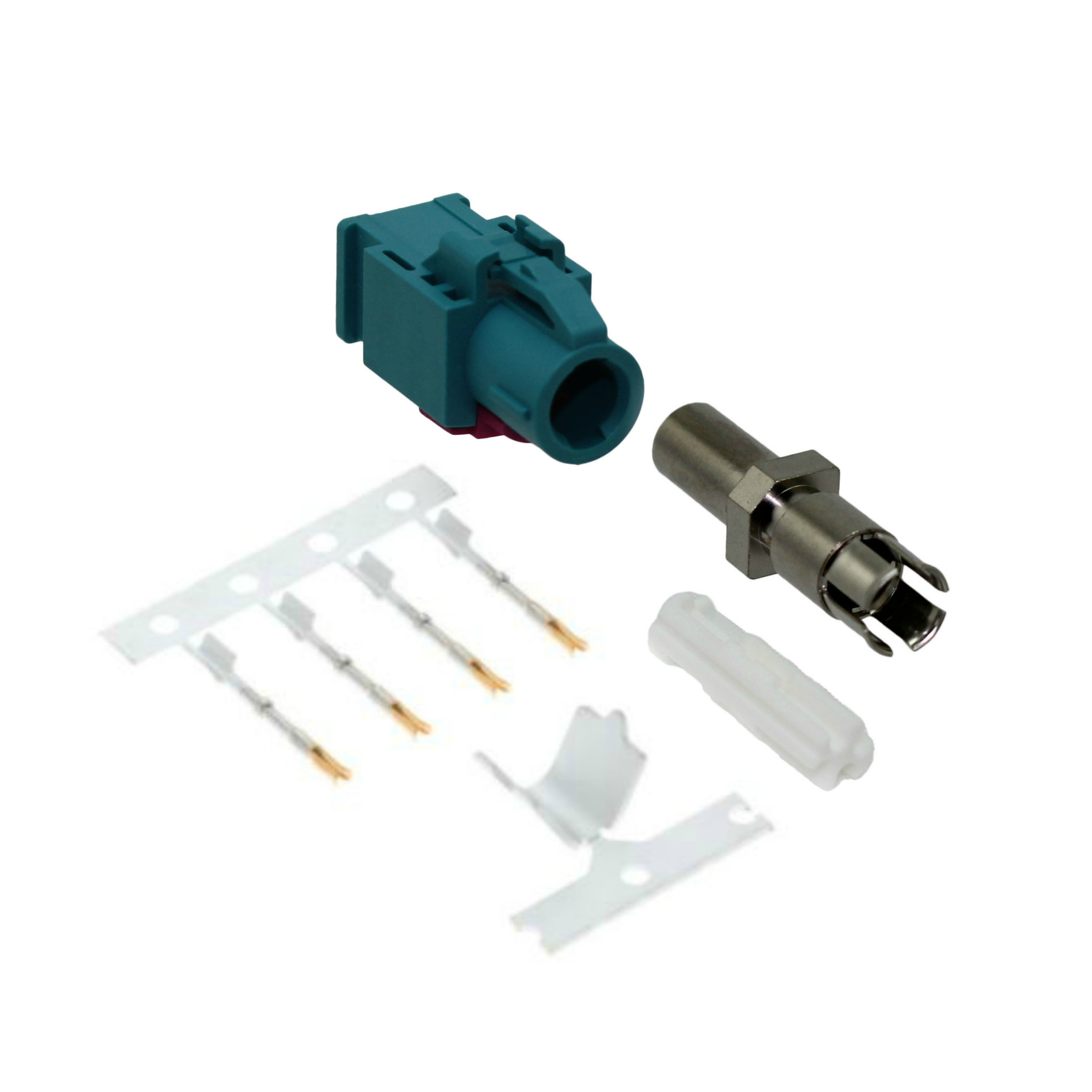

CONN FAKRA HIGH SPEED DATA 4POS
| Part | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Frequency - Max [Max] | Contact Termination | Fastening Type | Housing Color | Impedance | Connector Style | Number of Ports | Shield Termination | Mounting Type | Center Contact Material | Features | Connector Type | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 25 | Polybutylene Terephthalate (PBT) | Brass | -40 C | 105 ░C | Gold | 2 GHz | Solder | Latch Lock | Blue Water | 100 Ohms | Fakra HSD® Quadraxial | 1 | Crimp | Free Hanging (In-Line) | Phosphor Bronze | Code Z | Female Socket Jack | |
 Adam Tech | 25 | Polyamide (PA) Nylon | Zinc Alloy | -40 C | 105 ░C | Gold | 2 GHz | Solder | Latch Lock | Blue Water | 100 Ohms | Fakra HSD® Quadraxial | 1 | Solder | Right Angle Through Hole | Brass | Code Z | Plug Male Pin | Tin |
