2842162 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,BRK HDR,DRRT,2.8,0.1AU,BO

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Voltage Rating	Number of Positions	Current Rating (Amps)	Insulation Color	Contact Finish - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Material	Connector Type	Number of Rows	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions

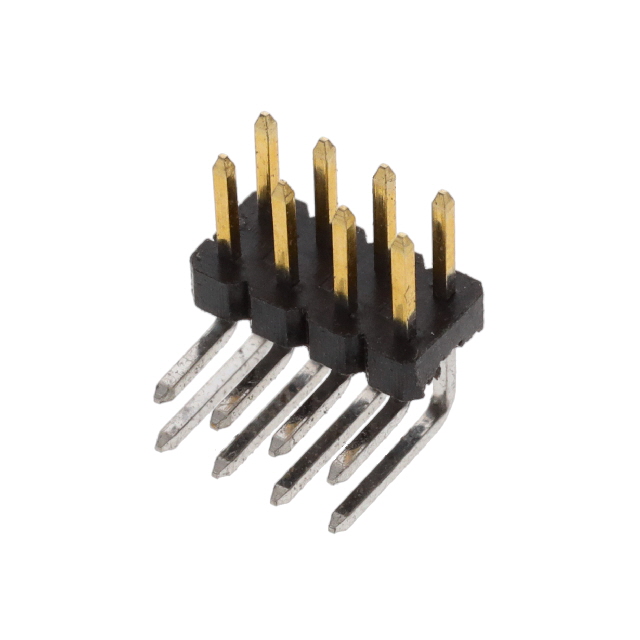

TE Connectivity Raychem Cable Protection 2842162-4	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	8	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold

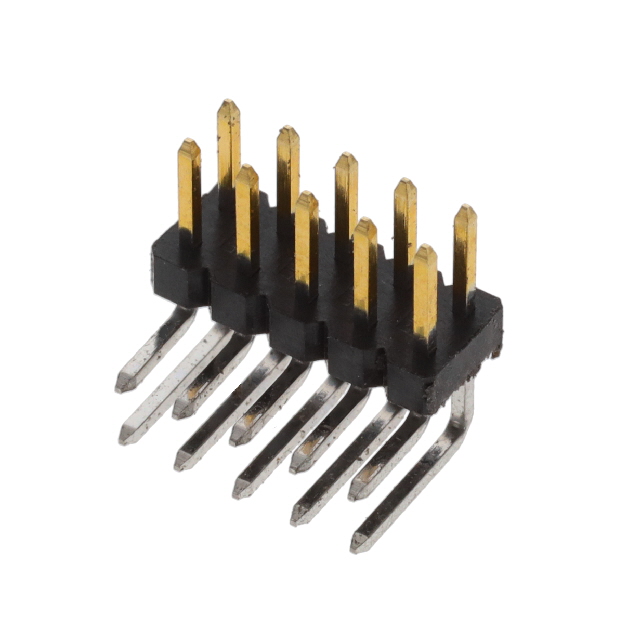

TE Connectivity Raychem Cable Protection 2842162-5	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	10	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold

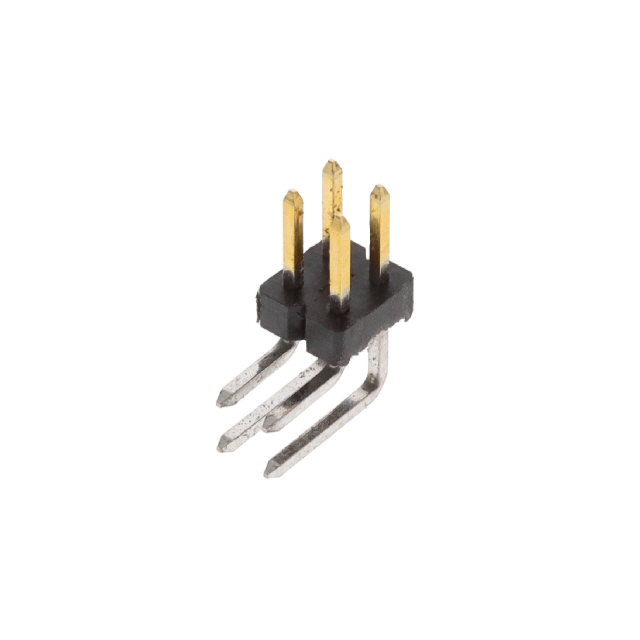

TE Connectivity Raychem Cable Protection 2842162-2	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	4	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold
TE Connectivity Raychem Cable Protection 2842162-3	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	6	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold

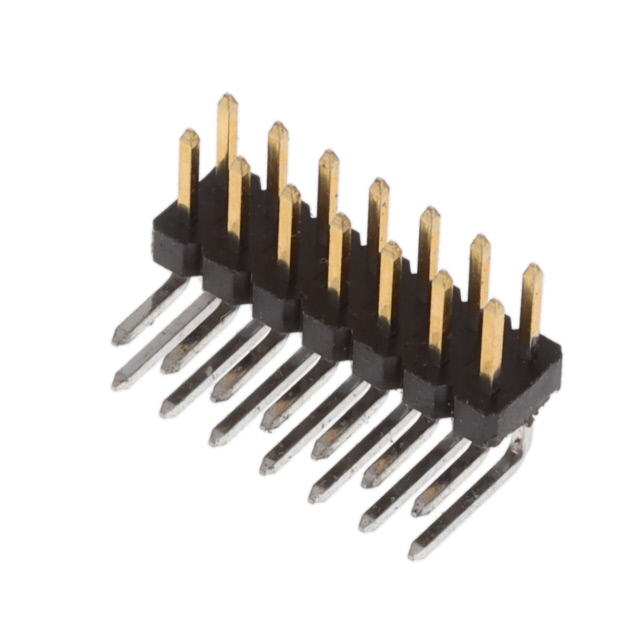

TE Connectivity Raychem Cable Protection 2842162-7	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	14	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold

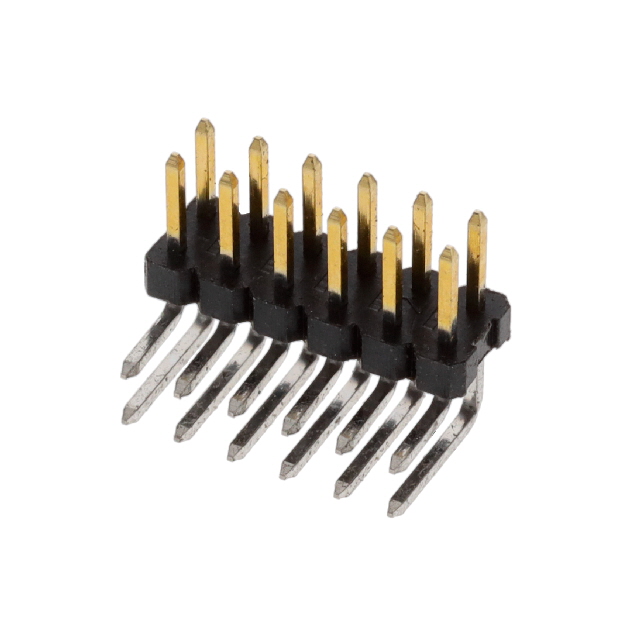

TE Connectivity Raychem Cable Protection 2842162-6	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	12	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold

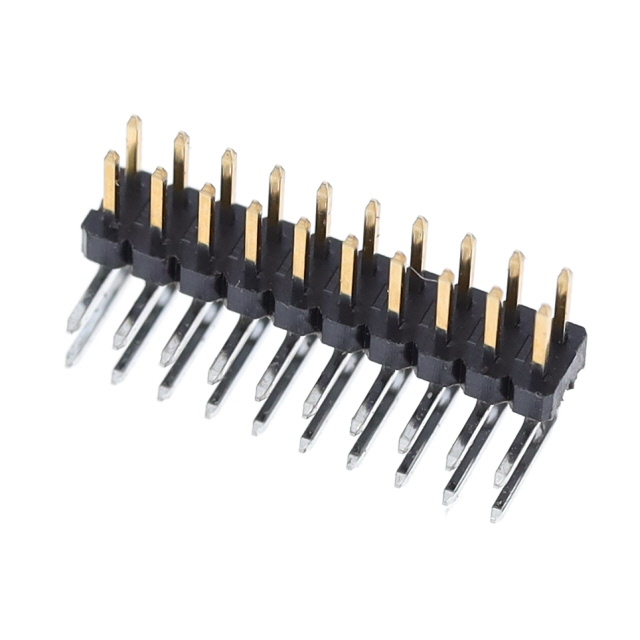

TE Connectivity Raychem Cable Protection 1-2842162-0	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC	20	2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold

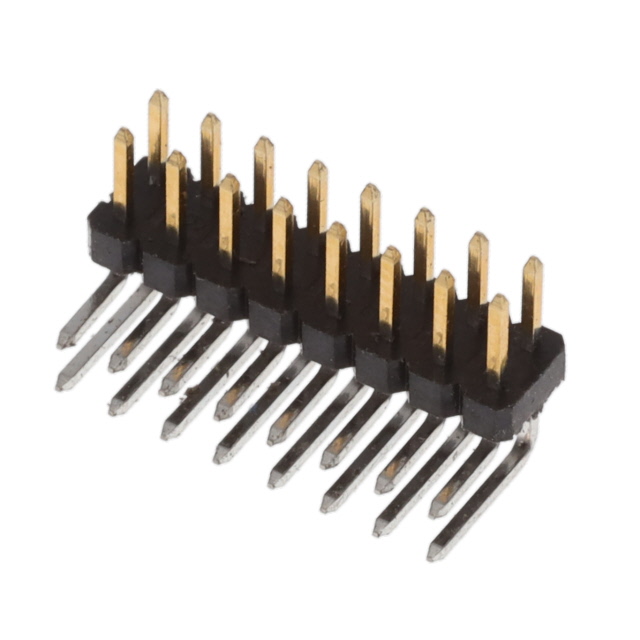

TE Connectivity Raychem Cable Protection 2842162-8	0.079 in	2 mm	Square	Unshrouded	2 çm	78.7 çin	All	0.11 in	2.79 mm	0.079 in	2 mm	Push-Pull	Through Hole Right Angle	3.94 µin	0.1 µm	Male Pin	125 VAC		2 A	Black	Tin	Copper Alloy	125 °C	-40 °C	Solder	Thermoplastic	Breakaway Header	2	UL94 V-0	4 mm	0.157 in	1.5 mm	0.059 "	Gold	16
