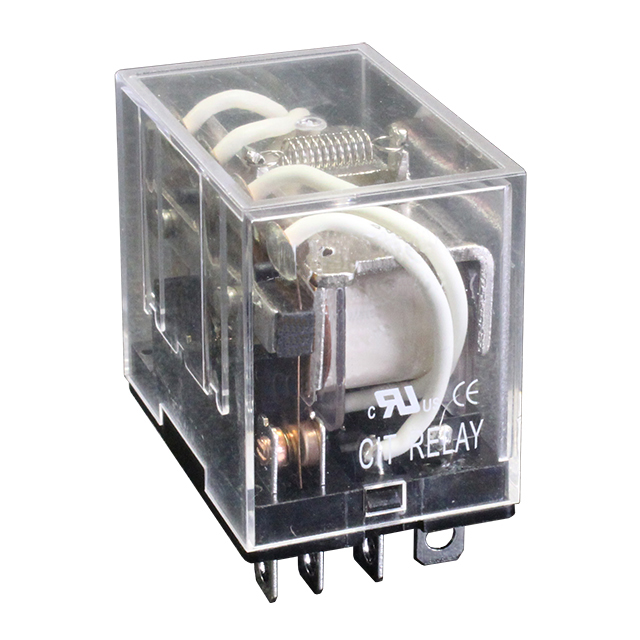

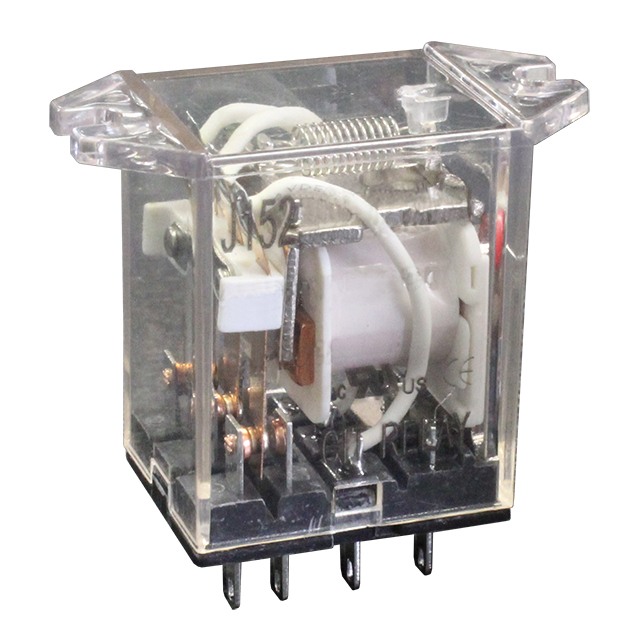

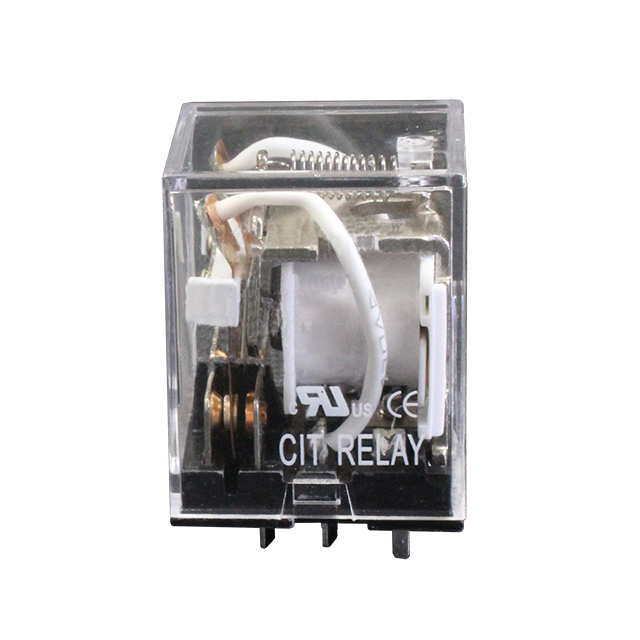

J1522C Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 110V
| Part | Coil Resistance | Coil Voltage | Switching Voltage [Max] | Load - Max Switching | Contact Rating (Current) | Approval Agency | Coil Type | Must Operate Voltage | Release Time | Relay Type | Must Release Voltage | Contact Material | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operate Time | Termination Style | Coil Current | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 11000 Ohms | 110 VDC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 82.5 VDC | 25 ms | General Purpose | 11 VDC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Through Hole | 25 ms | PC Pin | 10 mA | |
CIT Relay and Switch | 160 Ohms | 12 VDC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 9 VDC | 25 ms | General Purpose | 1.2 VDC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Through Hole | 25 ms | PC Pin | 0.075 A | |
 CIT Relay and Switch | 4.55 kOhms | 120 VAC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 96 VAC | 25 ms | General Purpose | 36 VAC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Socketable | 25 ms | Plug In | 26.4 mA | Lighted Indicator |
 CIT Relay and Switch | 640 Ohms | 24 VDC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 18 VDC | 25 ms | General Purpose | 2.4 VDC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Chassis Mount | 25 ms | Plug In | 0.0375 A | Lighted Indicator |
CIT Relay and Switch | 3.75 kOhms | 110 VAC/DC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 88 VAC/DC | 25 ms | General Purpose | 33 VAC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Through Hole | 25 ms | PC Pin | 29.3 mA | Lighted Indicator |
CIT Relay and Switch | 160 Ohms | 12 VDC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 9 VDC | 25 ms | General Purpose | 1.2 VDC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Socketable | 25 ms | Plug In | 0.075 A | Lighted Indicator |
CIT Relay and Switch | 160 Ohms | 12 VDC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 9 VDC | 25 ms | General Purpose | 1.2 VDC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Chassis Mount | 25 ms | Plug In | 0.075 A | Lighted Indicator |
CIT Relay and Switch | 3.75 kOhms | 110 VAC/DC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 88 VAC/DC | 25 ms | General Purpose | 33 VAC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Chassis Mount | 25 ms | Plug In | 29.3 mA | Lighted Indicator |
CIT Relay and Switch | 46 Ohms | 12 VAC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 9.6 VAC/DC | 25 ms | General Purpose | 3.6 VAC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Chassis Mount | 25 ms | Plug In | 260.9 mA | |
CIT Relay and Switch | 184 Ohms | 24 VAC | 300 VAC | 3000 VA | 10 A | cURus TUV | Non Latching | 19.2 VAC | 25 ms | General Purpose | 7.2 VAC | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 85 °C | -40 C | Socketable | 25 ms | Plug In | 130.4 mA |
