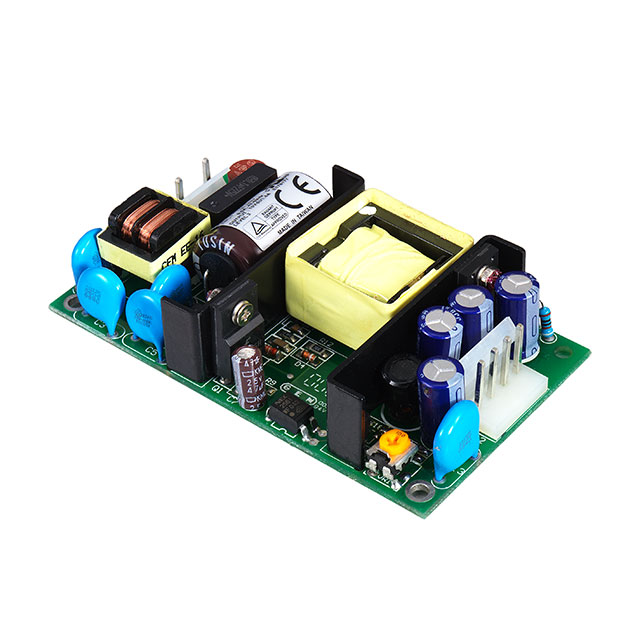

CFM2001 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

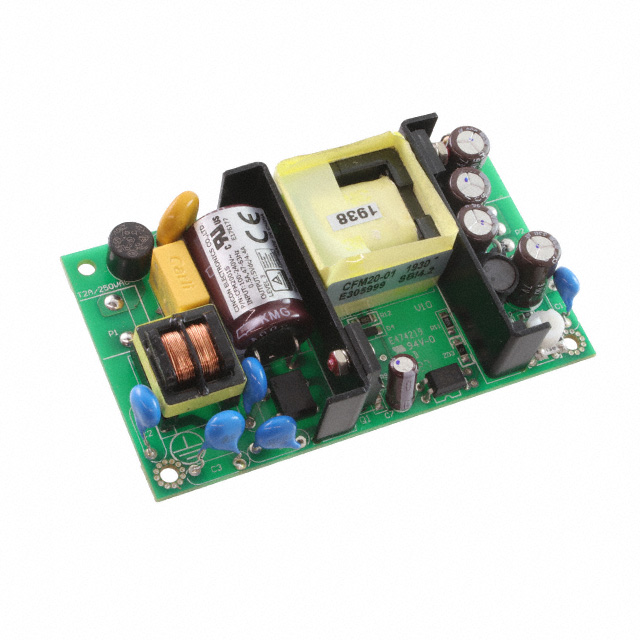

SWITCHING POWER SUPPLIES AC-DC MODULE, 20 WATT, OPEN FRAME, 85-264VAC INPUT, 5VDC OUTPUT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Features | Power (Watts) | Efficiency | Current - Output 1 | Approval Agency | Voltage - Isolation | Type | Voltage - Output 1 | Applications | Line Regulation | Load Regulation | Package / Case | Current - Output (Max) [Max] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 70 °C | 0 °C | Chassis Mount | 1 | 3.5 " | 0.91 in | 88.9 mm | 50.8 mm | 2 in | 23 mm | Universal Input | 22 W | 72 % | 4.4 A | CE cURus TUV | 4.242 kV | Open Frame | 5 V | ITE (Commercial) | |||||
 Cincon Electronics Co. LTD | 70 °C | 0 °C | Through Hole | 1 | 3.5 " | 1 in | 88.9 mm | 50.8 mm | 2 in | 25.4 mm | Universal Input | 22 W | 72 % | CE cURus TUV | Open Frame | 5 V | ITE (Commercial) | 0.5 % | ±1% | Module | 4.4 A | 60950-1 |
