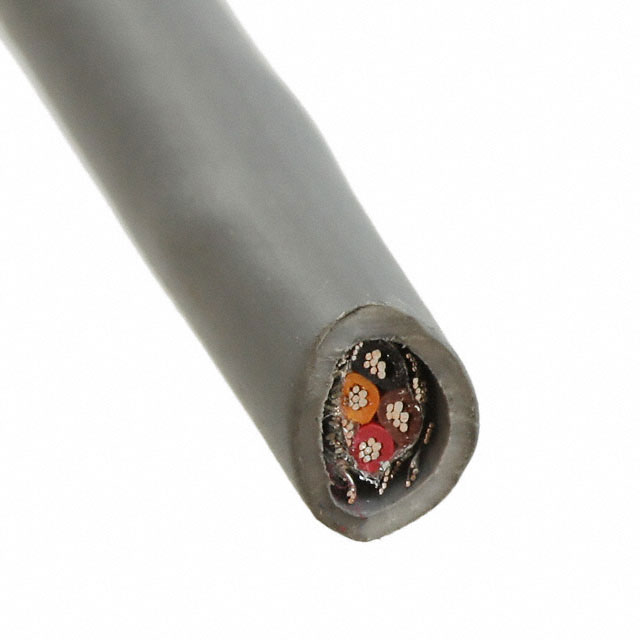

77233 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 4COND 14AWG SHLD 100=100'
| Part | Shield Material | Shield Coverage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Voltage | Wire Gauge | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Ratings | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 100 % | Biological Compatibility | 0.813 mm | 0.032 in | 4 | 0.329 in | 8.36 mm | Copper Tinned | 41 | 30 | Multi-Conductor | Slate | 600 V | 14.5 AWG | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | ISO 10993 | Braid Foil | ||
ALPHA WIRE | Aluminum Copper Tinned | 100 % | Biological Compatibility | 0.813 mm | 0.032 in | 4 | 0.329 in | 8.36 mm | Copper Tinned | 41 | 30 | Multi-Conductor | Slate | 600 V | 14.5 AWG | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | ISO 10993 | Braid Foil | 100 ft | 30.5 m |
