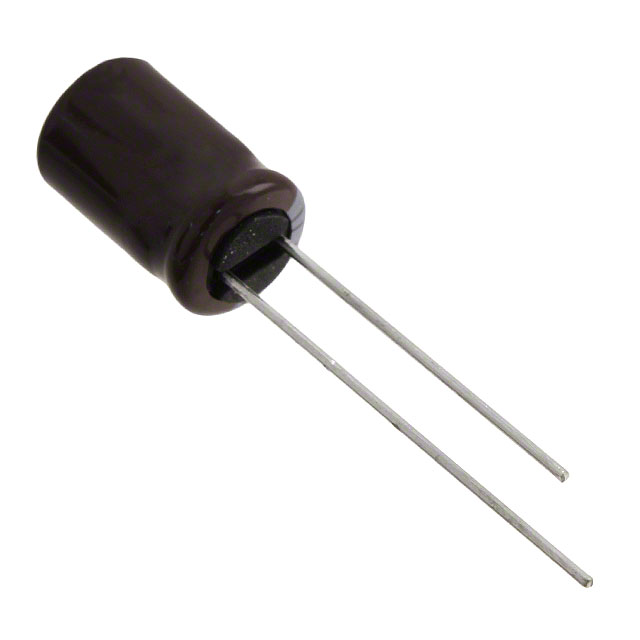

EKZE100E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 470UF 20% 10V RADIAL TH

Part	Lead Spacing	Lead Spacing	Polarization	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Capacitance	Mounting Type	Lifetime @ Temp.	Voltage - Rated	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Applications	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE100ETC471MHB5D	0.138 in	3.5 mm	Polar	380 mA	0.315 in	8 mm	-40 C	105 ░C	72 mOhms	470 µF	Through Hole	3000 Hrs	10 V	Can Radial	0.512 "	13 mm	20 %	General Purpose

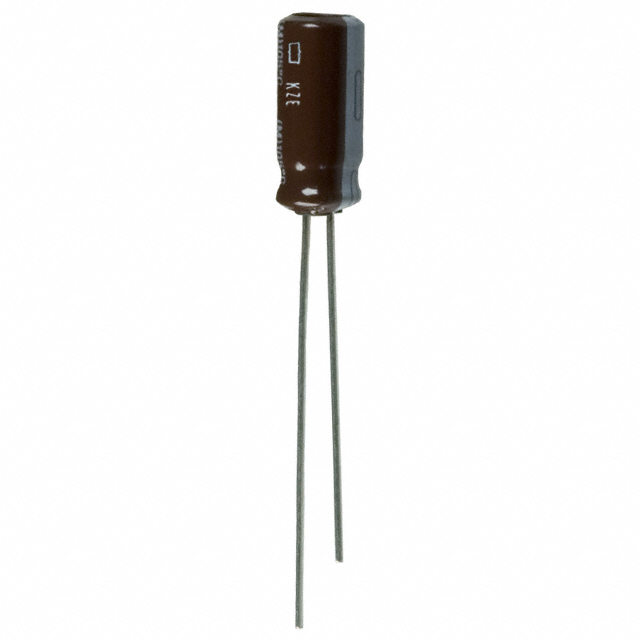

Chemi-Con EKZE100ETD101ME11D	0.079 in	2 mm	Polar	100 mA	0.197 in	5 mm	-40 C	105 ░C	300 mOhms	100 µF	Through Hole	2000 Hrs	10 V	Can Radial			20 %	General Purpose	250 mA	0.492 in	12.5 mm

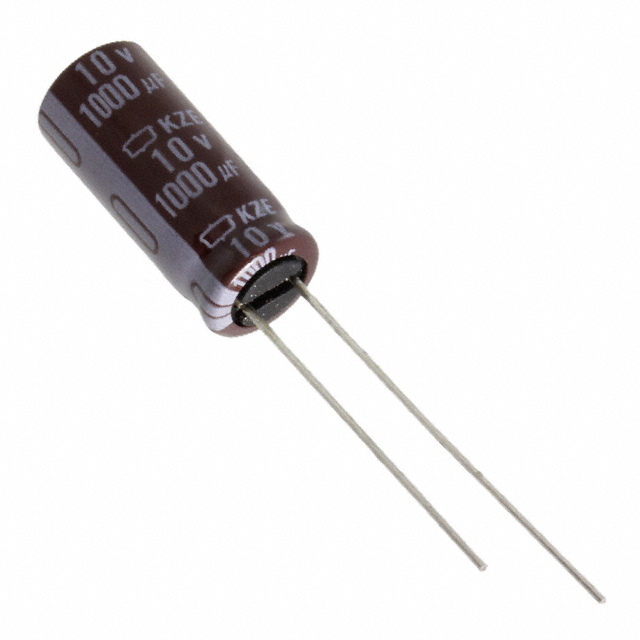

Chemi-Con EKZE100ELL102MH20D	0.138 in	3.5 mm	Polar	750 mA	0.315 in	8 mm	-40 C	105 ░C	41 mOhms	1000 µF	Through Hole	3000 Hrs	10 V	Can Radial			20 %	General Purpose	1.25 A	21.5 mm		0.846 "
Chemi-Con EKZE100EMC332MK25S	0.197 "	5 mm	Polar	2.0775 A	0.492 in	12.5 mm	-40 C	105 ░C	18 mOhms	3.3 mF	Through Hole	5000 Hrs	10 V	Can Radial	1.043 in	26.5 mm	20 %	General Purpose	2.77 A
Chemi-Con EKZE100ELL392MK30S	0.197 "	5 mm	Polar	2.4675 A	0.492 in	12.5 mm	-40 C	105 ░C	16 mOhms	3900 µF	Through Hole	5000 Hrs	10 V	Can Radial			20 %	General Purpose	3.29 A	31.5 mm		1.24 in
Chemi-Con EKZE100ETD102MJ16S	0.197 "	5 mm	Polar	858 mA	0.394 in	10 mm	-40 C	105 ░C	38 mOhms	1000 µF	Through Hole	4000 Hrs	10 V	Can Radial		0.689 in	20 %	General Purpose	1.43 A				17.5 mm
Chemi-Con EKZE100ELL681MJC5S	0.197 "	5 mm	Polar	618 mA	0.394 in	10 mm	-40 C	105 ░C	53 mOhms	680 µF	Through Hole	4000 Hrs	10 V	Can Radial			20 %	General Purpose	1.03 A	14 mm		0.551 in
Chemi-Con EKZE100ELL222MK20S	0.197 "	5 mm	Polar	1.77 A	0.492 in	12.5 mm	-40 C	105 ░C	21 mOhms	2200 µF	Through Hole	5000 Hrs	10 V	Can Radial			20 %	General Purpose	2.36 A	21.5 mm		0.846 "
Chemi-Con EKZE100ETC102MH20D	0.138 in	3.5 mm	Polar	750 mA	0.315 in	8 mm	-40 C	105 ░C	41 mOhms	1000 µF	Through Hole	3000 Hrs	10 V	Can Radial			20 %	General Purpose	1.25 A	21.5 mm		0.846 "
