M80-481 Series

Catalog

12+12 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Part	Features	Connector Type	Number of Rows [custom]	Number of Positions	Row Spacing	Row Spacing	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pitch [x]	Pitch [x]	Wire Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Cable Termination
Harwin Inc. M80-4812405	Jackscrews	Receptacle	2	24	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp

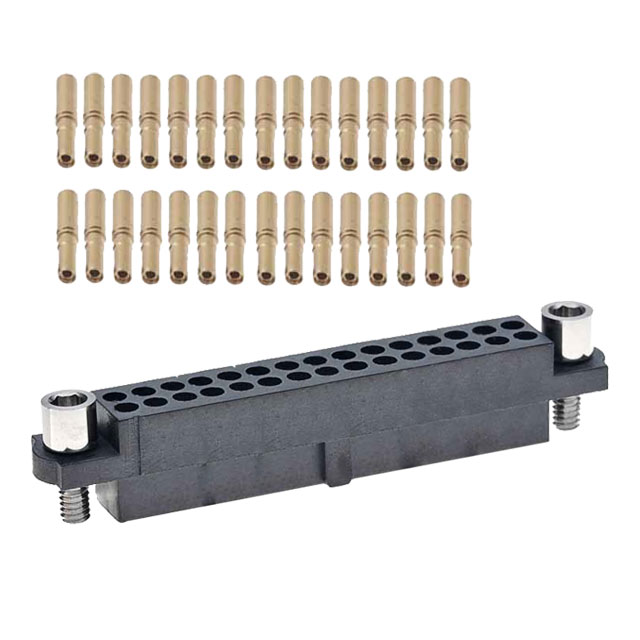

Harwin Inc. M80-4813005	Jackscrews	Receptacle	2	30	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
Harwin Inc. M80-4811642	Jackscrews	Receptacle	2	16	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
Harwin Inc. M80-4815042	Jackscrews	Receptacle	2	50	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
Harwin Inc. M80-4813642	Jackscrews	Receptacle	2	36	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
Harwin Inc. M80-4811405	Jackscrews	Receptacle	2	14	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp

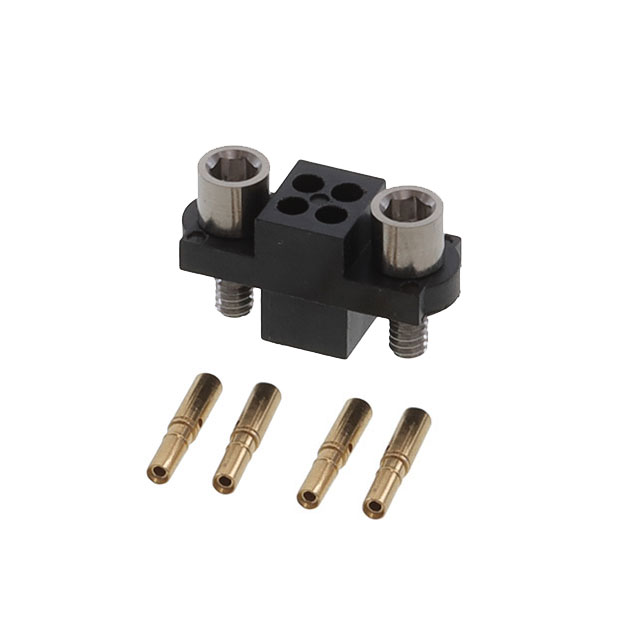

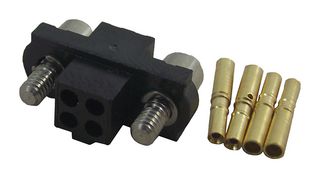

Harwin Inc. M80-4810405	Jackscrews	Receptacle	2	4	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
Harwin Inc. M80-4814442	Jackscrews	Receptacle	2	44	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
Harwin Inc. M80-4812442	Jackscrews	Receptacle	2	24	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp

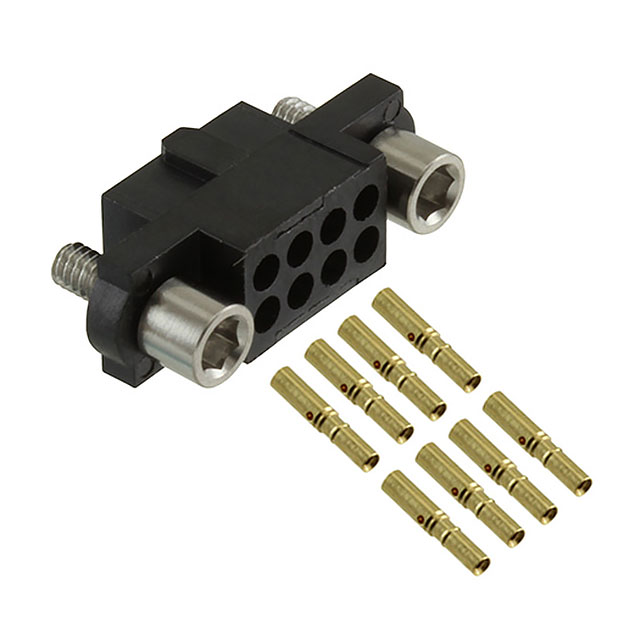

Harwin Inc. M80-4810805	Jackscrews	Receptacle	2	8	2 mm	0.079 in	Gold	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	Discrete	Black	24 AWG	28 AWG	Free Hanging (In-Line)	Crimp
