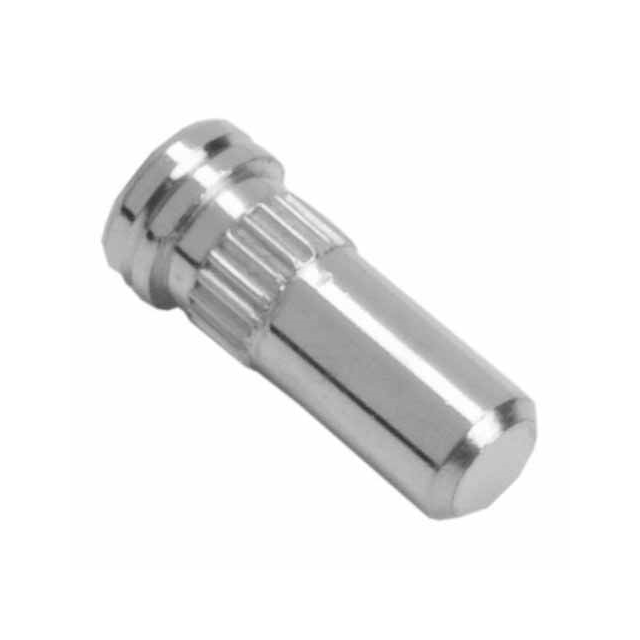

H8501 Series
Manufacturer: Harwin Inc.
Beta
⌘K
0.8MM SOCKET ASSY ROHS COMPLIANT: YES
| Part | Insertion Force [Max] | Insertion Force [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Tail Type | Length - Overall [x] | Length - Overall [x] | Socket Depth | Socket Depth | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 5.01 N | 1.5 N | -55 C | 125 °C | Tin | 0.093 in | 2.36 mm | Knurled Press-Fit | 1.91 mm | 0.075 " | 0.077 " | 1.96 mm | No Tail | 0.224 in | 5.69 mm | 0.183 in | 4.65 mm | 0.033 " | 0.024 " | 0.85 mm | 0.6 mm | 4 µm | 157.5 µin | Beryllium Copper |
