0230.375 Series

FUSE 250V SB PT 2AG Pb-FREE .375A

Catalog

FUSE 250V SB PT 2AG Pb-FREE .375A

Part	Breaking Capacity @ Rated Voltage	Response Time	Package / Case	Approval Agency	Fuse Type	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Mounting Type	Current Rating (Amps)	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - AC	DC Cold Resistance
LITTELFUSE 0230.375DRT2SP	10 kA 35 A	Slow Blow	Cartridge Non-Standard (Axial)	CE CSA UL	Cartridge Glass	0.571 in	4.5 mm	0.177 "	14.5 mm	Through Hole	375 mA	0.58 I²t	-55 C	125 °C	125 VDC	250 V
LITTELFUSE 0230.375DRT3P	10 kA 35 A	Slow Blow	Cartridge Non-Standard (Axial)	CE CSA UL	Cartridge Glass	0.571 in	4.5 mm	0.177 "	14.5 mm	Through Hole	375 mA	0.58 I²t	-55 C	125 °C	125 VDC	250 V	1.1685 Ohms
LITTELFUSE 0230.375DRT2P	10 kA 35 A	Slow Blow	Cartridge Non-Standard (Axial)	CE CSA UL	Cartridge Glass	0.571 in	4.5 mm	0.177 "	14.5 mm	Through Hole	375 mA	0.58 I²t	-55 C	125 °C	125 VDC	250 V
LITTELFUSE 0230.375DRT1P	10 kA 35 A	Slow Blow	Cartridge Non-Standard (Axial)	CE CSA UL	Cartridge Glass	0.571 in	4.5 mm	0.177 "	14.5 mm	Through Hole	375 mA	0.58 I²t	-55 C	125 °C	125 VDC	250 V
LITTELFUSE 0230.375DRT1SP	10 kA 35 A	Slow Blow	Cartridge Non-Standard (Axial)	CE CSA UL	Cartridge Glass	0.571 in	4.5 mm	0.177 "	14.5 mm	Through Hole	375 mA	0.58 I²t	-55 C	125 °C	125 VDC	250 V

Catalog

FUSE 250V SB PT 2AG Pb-FREE .375A

Description

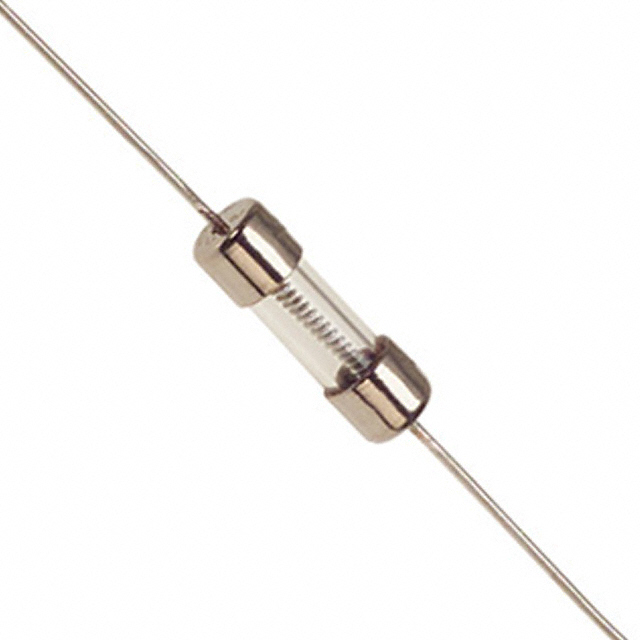

The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
