VB40 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

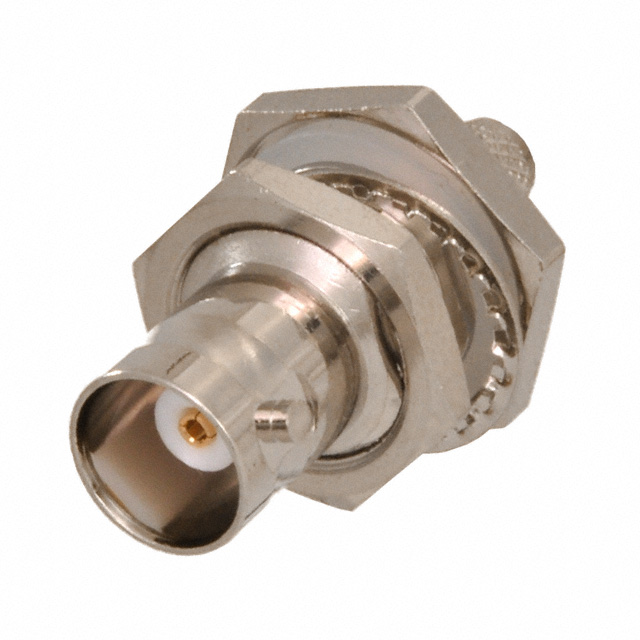

CONN BNC JACK STR CRIMP
| Part | Mounting Feature | Connector Type | Fastening Type | Number of Ports | Connector Style | Cable Group | Shield Termination | Mounting Type | Contact Termination | Voltage Rating | Body Finish | Insertion Loss | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Center Contact Plating | Mating Cycles | Impedance | Center Contact Material | Frequency - Max [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Bulkhead - Front Side Nut | Female Socket Jack | Bayonet Lock | 1 | BNC | BT2002 | Crimp | Panel Mount | Crimp | ||||||||||||||
Cinch Connectivity Solutions | Bulkhead - Front Side Nut | Female Socket Jack | Bayonet Lock | 1 | BNC | RG-174 | Crimp | Panel Mount | Crimp | ||||||||||||||
 Cinch Connectivity Solutions | Bulkhead - Front Side Nut | Female Socket Jack | Bayonet Lock | 1 | BNC | RG-59 | Crimp | Panel Mount | Crimp | 500 V | Nickel | 0.2 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Nut 1 Washer | Gold | 500 | 50 Ohms | Brass | 1 GHz | Silver |
