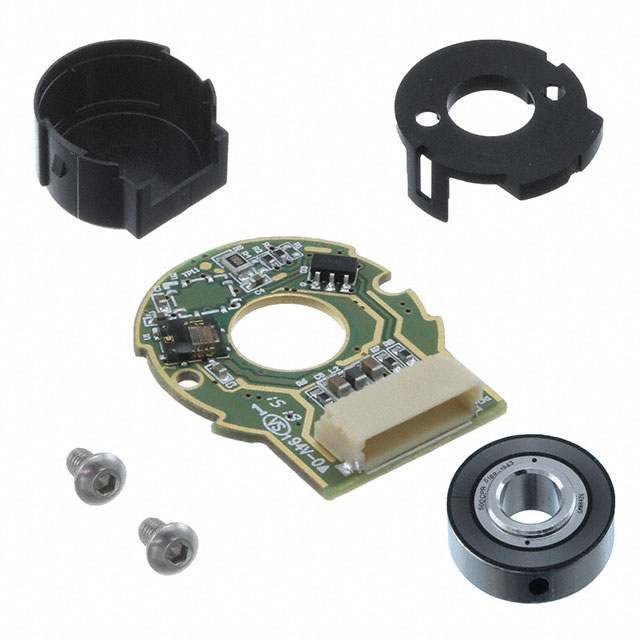

AS22-M560 Series

Catalog

ROTARY ENCODR INCREMENTAL 360PPR

Part	Encoder Type	Output Type	Orientation	Pulses per Revolution	Mounting Type	Termination Style	Actuator Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Broadcom Limited AS22-M560-4G12	Incremental	Voltage	User Selectable	360	Chassis Mount	Connector	Hole for Shaft	5.5 V	4.5 V
Broadcom Limited AS22-M560-4T12	Incremental	Voltage	User Selectable	2000	Chassis Mount	Connector	Hole for Shaft	5.5 V	4.5 V
Broadcom Limited AS22-M560-4A12	Incremental	Voltage	User Selectable	500	Chassis Mount	Connector	Hole for Shaft	5.5 V	4.5 V
Broadcom Limited AS22-M560-4G14	Incremental	Voltage	User Selectable	360	Chassis Mount	Connector	Hole for Shaft	5.5 V	4.5 V
