052559 Series

Manufacturer: Molex

Catalog

CONN FFC VERT 16POS 0.5MM SMD

Part	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	FFC, FCB Thickness	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Cable End Type	Height Above Board	Height Above Board	Connector/Contact Type	Termination	Locking Feature	Contact Finish	Flat Flex Type	Pitch [x]	Pitch [x]	Contact Material	Mounting Type	Number of Positions	Housing Color	Mating Cycles	Actuator Color
Molex 0525591690	3 µm	118.1 µin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C	16	Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin-Lead	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount
Molex 0525592672	1 Ám	39.4 Áin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	500 mA	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin Bismuth	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount	26	Natural	20

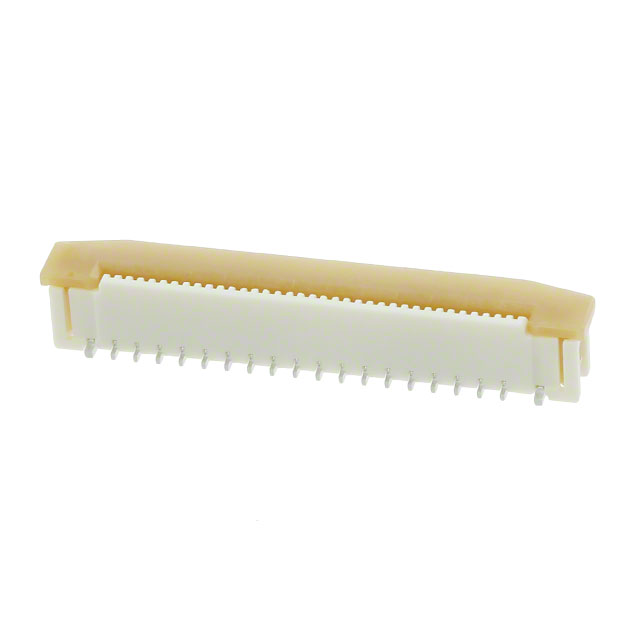

Molex 0525593652	1 Ám	39.4 Áin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Gold	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount	36		20
Molex 0525591033	1 Ám	39.4 Áin	Polyamide (PA) Nylon Glass Filled	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS) Glass Filled	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin Bismuth	FFC FPC	0.5 mm	0.02 in	Copper Alloy	Surface Mount	10	Natural	20	Brown

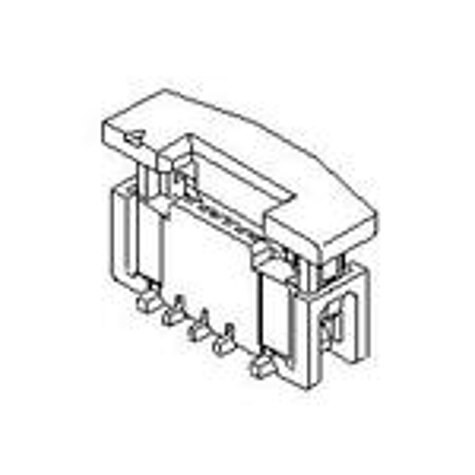

Molex 0525592870	1 Ám	39.4 Áin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin Bismuth	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount	28	Natural	20

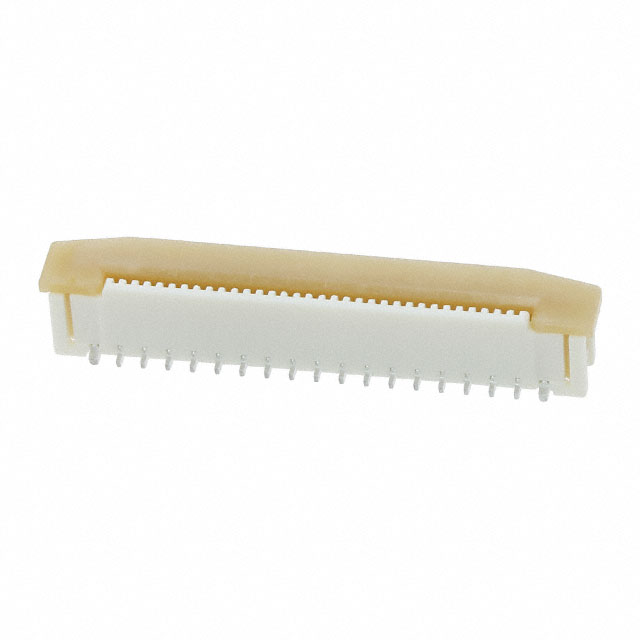

Molex 0525593353			Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Gold	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount	33		20
Molex 0525591334	1 Ám	39.4 Áin	Polyamide (PA) Nylon Glass Filled	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS) Glass Filled	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin Bismuth	FFC FPC	0.5 mm	0.02 in	Copper Alloy	Surface Mount	13	Natural	20	Brown
Molex 0525593092	3 µm	118.1 µin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-20 C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin-Lead	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount	30
Molex 0525591370	1 Ám	39.4 Áin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C		Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin Bismuth	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount	13		20
Molex 0525591672	1 Ám	39.4 Áin	Polyamide (PA46) Nylon 4/6	UL94 V-0	50 V	0.5 A	0.3 mm	Polyphenylene Sulfide (PPS)	85 °C	-40 °C	16	Straight Tapered	0.154 in	3.9 mm	Contacts Vertical - 1 Sided	Solder	Slide Lock	Tin Bismuth	FFC FPC	0.5 mm	0.02 in	Phosphor Bronze	Surface Mount		Natural	20
