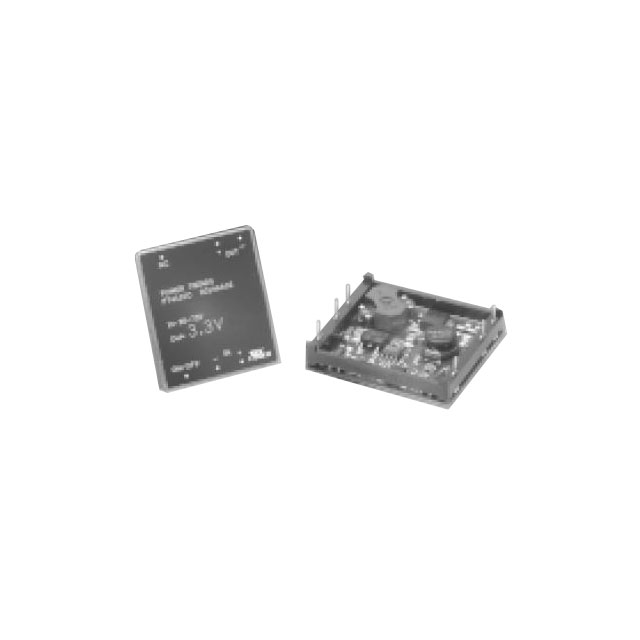

PT4101 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 5V 15W
| Part | Power (Watts) | Number of Outputs | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Efficiency | Applications | Voltage - Input (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Type | Mounting Type | Voltage - Output 1 | Voltage - Isolation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 15 W | 1 | 36 V | 85 °C | -40 °C | 3 A | 80 % | ITE (Commercial) | 75 V | 6-DIP Module | 42.4 mm | 0.33 in | 8.4 mm | 1.67 in | 37.6 mm | 1.48 in | Isolated Module | Through Hole | 5 V | 1.5 kV | |
Texas Instruments | 15 W | 1 | 36 V | 85 °C | -40 °C | 3 A | 80 % | ITE (Commercial) | 75 V | 6-SMD Module 5 Leads | 42.4 mm | 0.33 in | 8.4 mm | 1.67 in | 37.6 mm | 1.48 in | Isolated Module | Surface Mount | 5 V | 1.5 kV | OTP Remote On/Off SCP |
