1855 Series

Catalog

HOOK-UP WIRE 22AWG 7/30 PVC 100FT SPOOL ORANGE

Part	Voltage	Cable Type	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Qualification	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE 1855 OR005	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	Orange	Copper Tinned	30 AWG	7	-55 C	105 ░C	100 ft	30.5 m	0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm
ALPHA WIRE 1855 WV001	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	White Violet Stripe	Copper Tinned	30 AWG	7	-55 C	105 ░C			0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm	304.8 m	1000 ft
ALPHA WIRE 1855 WR005	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	White Red Stripe	Copper Tinned	30 AWG	7	-55 C	105 ░C	100 ft	30.5 m	0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm
ALPHA WIRE 1855 WH001	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	White	Copper Tinned	30 AWG	7	-55 C	105 ░C			0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm	304.8 m	1000 ft
ALPHA WIRE 1855 VI001	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	Violet	Copper Tinned	30 AWG	7	-55 C	105 ░C			0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm	304.8 m	1000 ft
ALPHA WIRE 1855 WN001	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	White Brown Stripe	Copper Tinned	30 AWG	7	-55 C	105 ░C			0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm	304.8 m	1000 ft
ALPHA WIRE 1855 SL005	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	Slate	Copper Tinned	30 AWG	7	-55 C	105 ░C	100 ft	30.5 m	0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm

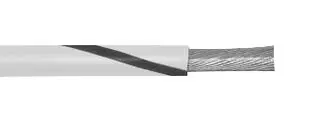

ALPHA WIRE 1855 WB001	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	Black Stripe White	Copper Tinned	30 AWG	7	-55 C	105 ░C			0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm	304.8 m	1000 ft
ALPHA WIRE 1855 WB005	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	Black Stripe White	Copper Tinned	30 AWG	7	-55 C	105 ░C	100 ft	30.5 m	0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm
ALPHA WIRE 1855 YL005	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	22 AWG	Yellow	Copper Tinned	30 AWG	7	-55 C	105 ░C	100 ft	30.5 m	0.25 mm	0.01 in	MIL-W-16878E/1 MIL-W-76B Type LW	0.05 "	1.27 mm
