110-44 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC SKT DBL

Part	Contact Resistance	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Termination	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Contact Material - Mating	Mounting Type	Contact Finish - Post	Type	Type	Pitch - Mating	Pitch - Mating	Type	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Features	Type [custom]	Type [custom]
Mill-Max Manufacturing Corp. 110-44-420-61-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	20	Beryllium Copper	Through Hole	Tin	0.4 in	DIP	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 110-44-310-61-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	10	Beryllium Copper	Through Hole	Tin	0.3 in	DIP	0.1 "	2.54 mm	7.62 mm	5	2

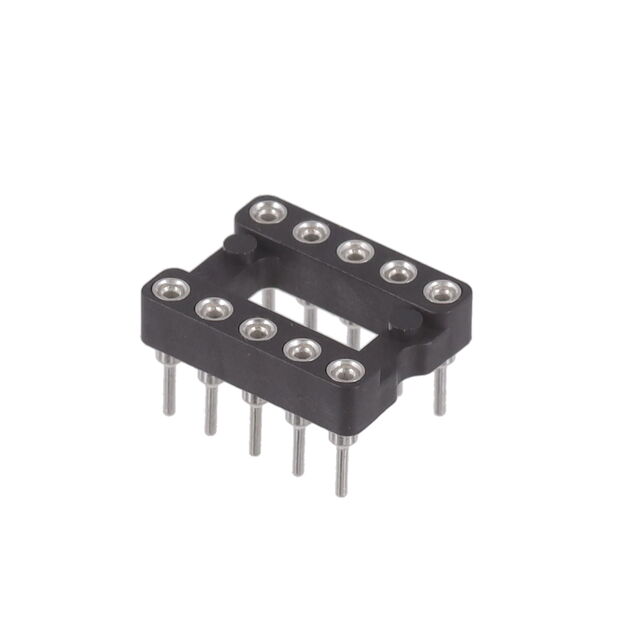

Mill-Max Manufacturing Corp. 110-44-310-41-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	10	Beryllium Copper	Through Hole	Tin	0.3 in	DIP	0.1 "	2.54 mm	7.62 mm	5	2	Open Frame
Mill-Max Manufacturing Corp. 110-44-964-61-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	64	Beryllium Copper	Through Hole	Tin	0.9 in	DIP	0.1 "	2.54 mm	22.86 mm	32	2

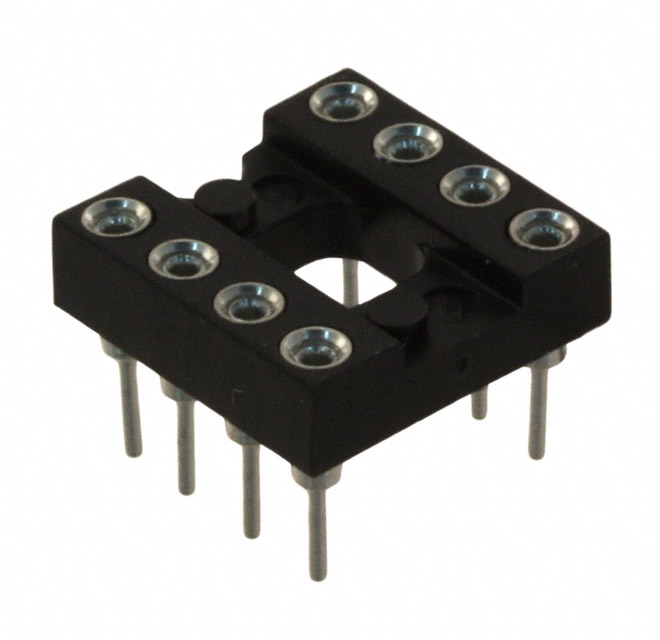

Mill-Max Manufacturing Corp. 110-44-308-41-001000			3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	8	Beryllium Copper	Through Hole	Tin	0.3 in	DIP	0.1 "	2.54 mm	7.62 mm	4	2	Open Frame
Mill-Max Manufacturing Corp. 110-44-640-61-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	40	Beryllium Copper	Through Hole	Tin		DIP	0.1 "	2.54 mm					15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-44-632-41-001000			3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	32	Beryllium Copper	Through Hole	Tin		DIP	0.1 "	2.54 mm				Open Frame	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-44-320-41-001000			3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	20	Beryllium Copper	Through Hole	Tin	0.3 in	DIP	0.1 "	2.54 mm	7.62 mm			Open Frame
Mill-Max Manufacturing Corp. 110-44-424-61-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	24	Beryllium Copper	Through Hole	Tin	0.4 in	DIP	0.1 "	2.54 mm		2	12
Mill-Max Manufacturing Corp. 110-44-328-61-001000	10 mOhm	UL94 V-0	3 A	0.125 in	3.18 mm	100 çin	2.54 çm	0.1 in	2.54 mm	200 µin	5.08 µm	Brass Alloy	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	28	Beryllium Copper	Through Hole	Tin	0.3 in	DIP	0.1 "	2.54 mm	7.62 mm
