6343 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

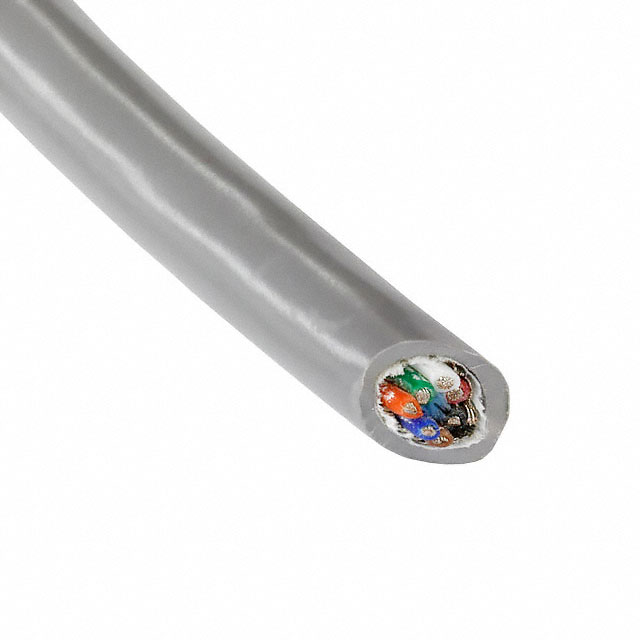

CABLE 7COND 22AWG SHLD
| Part | Shield Material | Shield Coverage | Ratings | Number of Conductors | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Length | Length | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Cable Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | UL Style 2464 | 7 | Copper Tinned | 22 AWG | 0.241 in | 6.12 mm | 304.8 m | 1000 ft | 300 VDC | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Slate | Multi-Conductor | Drain Wire | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Braid Foil |
