53258 Series

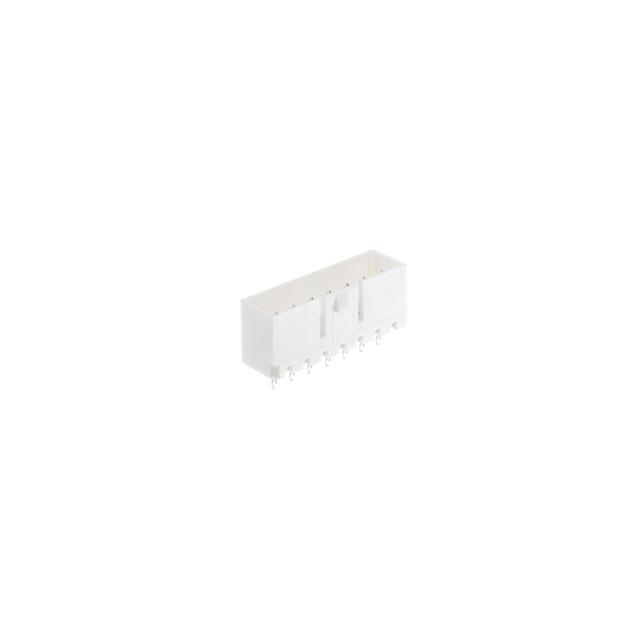

Mighty-SPOX Header, 3.50mm Pitch, Vertical, 10 Circuits, Brass (CuZn) Contact
Manufacturer: Molex
Catalog
Mighty-SPOX Header, 3.50mm Pitch, Vertical, 10 Circuits, Brass (CuZn) Contact
Beta
⌘K
Mighty-SPOX Header, 3.50mm Pitch, Vertical, 10 Circuits, Brass (CuZn) Contact
Mighty-SPOX Header, 3.50mm Pitch, Vertical, 10 Circuits, Brass (CuZn) Contact
Mighty-SPOX Header, 3.50mm Pitch, Vertical, 10 Circuits, Brass (CuZn) Contact
| Part | Contact Finish - Post | Number of Positions Loaded | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Shape | Mounting Type | Connector Type | Contact Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Length - Post | Contact Length - Post | Insulation Color | Style | Number of Positions | Termination | Insulation Material | Fastening Type | Contact Type | Shrouding | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | ||||||||||||||||||||||||
 Molex | Tin | All | 1 | 0.138 in | 3.5 mm | 0.413 in | 10.49 mm | Square | Through Hole | Header | Brass | 39.4 µin | 1 µm | 0.138 in | 3.5 mm | Natural | Board to Cable/Wire | 2 | Press-Fit Solder | Polybutylene Terephthalate (PBTP) | Locking Ramp | Male Pin | Shrouded - 4 Wall | UL94 V-0 |
