TB1-2F Series

Catalog

VAC DPDT ON-OFF-ON, TABS, 15/32

Part	Circuit	Current Rating	Actuator Length	Actuator Type	Bushing Thread	Voltage Rating - AC	Switch Function	Quick Connect Size (0.250")	Termination Style	Mounting Type	Illumination	Panel Cutout Diameter	Panel Cutout Shape	Electrical Life (Cycles)	Voltage Rating - DC

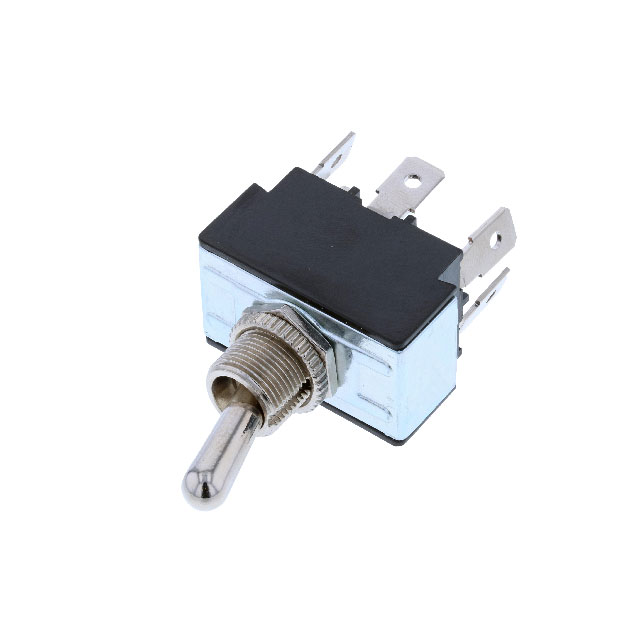

Switch Components TB1-2F-AC-1	DPDT	10 A	16.5 mm	Standard Round	15/32-32	250 V	On-Off-On	0.25 in	Quick Connect	Panel Mount	Non-Illuminated	12.2 mm	Circular
Switch Components TB1-2F-AC-6	DPDT	10 A	16.5 mm	Standard Round	15/32-32	250 V	On-Off-On		Screw Terminal	Panel Mount	Non-Illuminated	12.2 mm	Circular
Switch Components TB1-2F-DC-1	DPDT	20 A 21 A	16.5 mm	Standard Round	15/32-32	125 V	On-Off-On	0.25 in	Quick Connect	Panel Mount	Non-Illuminated	12 mm	Circular	6000 Cycles	14 V
Switch Components TB1-2F-DC-6	DPDT	20 A 21 A	16.5 mm	Standard Round	15/32-32	125 V	On-Off-On		Screw Terminal	Panel Mount	Non-Illuminated	12 mm	Circular	6000 Cycles	14 V

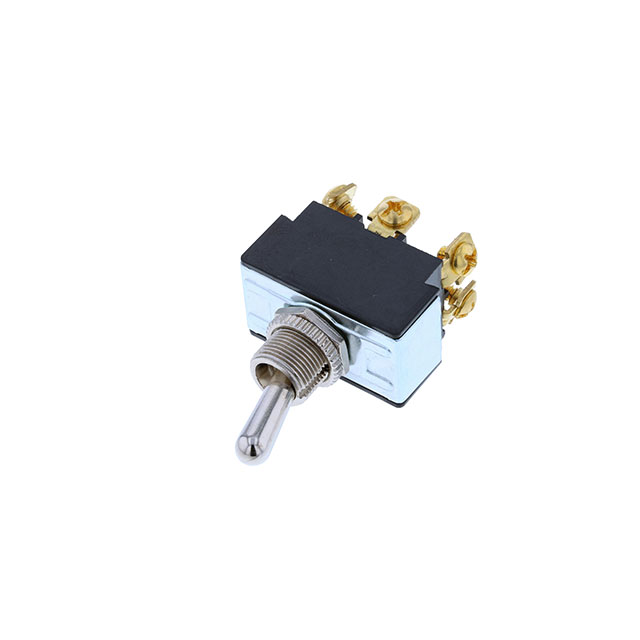

Switch Components TB1-2F-DC-5	DPDT	20 A 21 A	16.5 mm	Standard Round	15/32-32	125 V	On-Off-On		Solder Lug	Panel Mount	Non-Illuminated	12 mm	Circular	6000 Cycles	14 V
Switch Components TB1-2F-AC-5	DPDT	10 A	16.5 mm	Standard Round	15/32-32	250 V	On-Off-On		Solder Lug	Panel Mount	Non-Illuminated	12.2 mm	Circular
