9LG0924 Series

Catalog

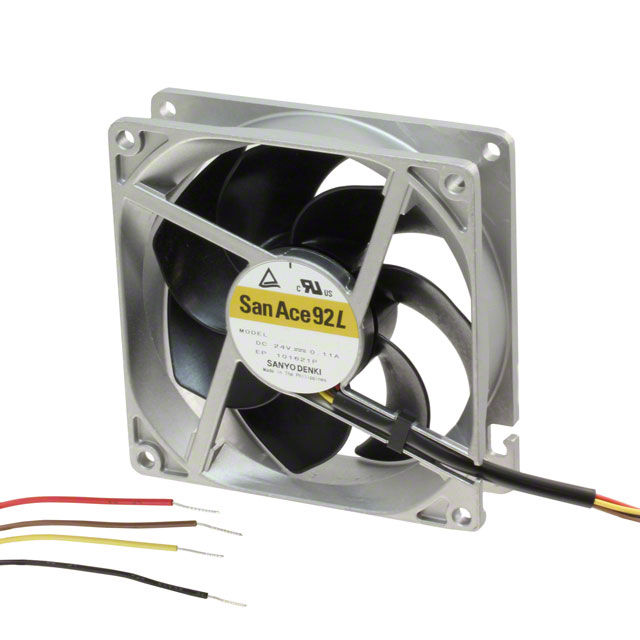

FAN: DC; AXIAL; 24VDC; 92X92X25MM; 101.4M3/H; 37DBA; BALL; 3850RPM

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Static Pressure	Static Pressure	RPM	Voltage - Rated	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Termination	Fan Type	Approval Agency	Features	Air Flow	Air Flow	Power (Watts)	Bearing Type
Sanyo Denki America Inc. 9LG0924P4S001	180000 Hrs	Aluminum	Plastic	110 mA	26.4 VDC	21.6 VDC	92 mm	92 mm	150.14 g	0.331 lb	62.3 Pa	0.25 in H2O	3850 RPM	24 VDC	25 mm	-20 ░C	70 °C	37 dB	4 Wire Leads	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.67 m³/min	59.7 CFM	2.64 W	Ball
Sanyo Denki America Inc. 9LG0924P1F001	180000 Hrs	Aluminum	Plastic	0.5 A			92 mm	92 mm	273.97 g	0.604 lb	261.5 Pa	1.05 in H2O	7000 RPM	24 VDC	38 mm	-20 ░C	70 °C	55 dB(A)	4 Wire Leads	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	2.87 m³/min	102.4 CFM	12 W	Ball
Sanyo Denki America Inc. 9LG0924P4H001	180000 Hrs	Aluminum	Plastic	70 mA	26.4 VDC	21.6 VDC	92 mm	92 mm	150.14 g	0.331 lb	42.3 Pa	0.17 in H2O	3150 RPM	24 VDC	25 mm	-20 ░C	70 °C	32 dB	4 Wire Leads	Tubeaxial	CSA TUV UL	PWM Control Speed Sensor (Tach)	1.36 m³/min	48.7 CFM	1.68 W	Ball
Sanyo Denki America Inc. 9LG0924P4J001	180000 Hrs	Aluminum	Plastic	0.21 A	26.4 VDC	21.6 VDC	92 mm	92 mm	150.14 g	0.331 lb	104.6 Pa	0.42 in H2O	5000 RPM	24 VDC	25 mm	-20 ░C	70 °C	44.2 dB(A)	4 Wire Leads	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	2.18 mł/min	77.7 CFM	5.04 W	Ball
Sanyo Denki America Inc. 9LG0924P4G001	180000 Hrs	Aluminum	Plastic	150 mA	26.4 VDC	21.6 VDC	92 mm	92 mm	150.14 g	0.331 lb	82.2 Pa	0.33 in H2O	4400 RPM	24 VDC	25 mm	-20 ░C	70 °C	40 dB(A)	4 Wire Leads	Tubeaxial	CSA TUV UL	PWM Control Speed Sensor (Tach)	1.91 m³/min	68.2 CFM	3.6 W	Ball
