IRM-01 Series

Catalog

AC/DC CONVERTER 12V 1W

Part	Line Regulation	Load Regulation	Mounting Type	Type	Package / Case	Current - Output (Max) [Max]	Features	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Number of Outputs	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]

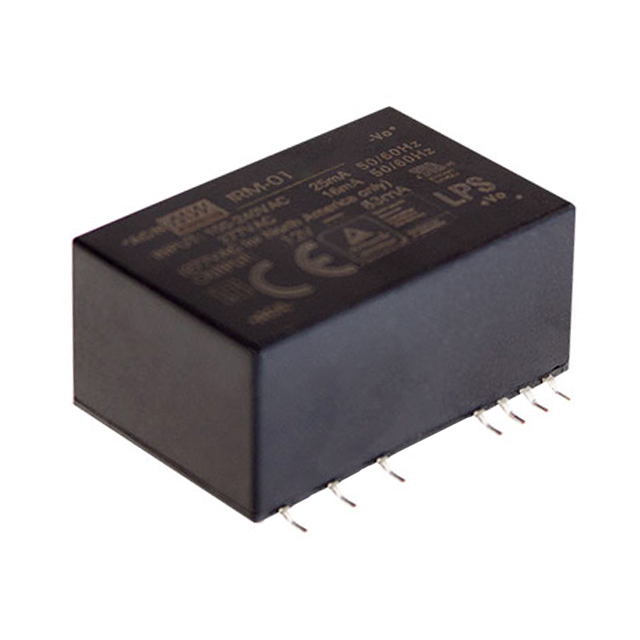

MEAN WELL USA Inc. IRM-01-12S	0.5 %	0.5 %	Surface Mount	Enclosed	24-SMD Module 14 Leads	83 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	74 %	ITE (Commercial)	1	12 V	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm

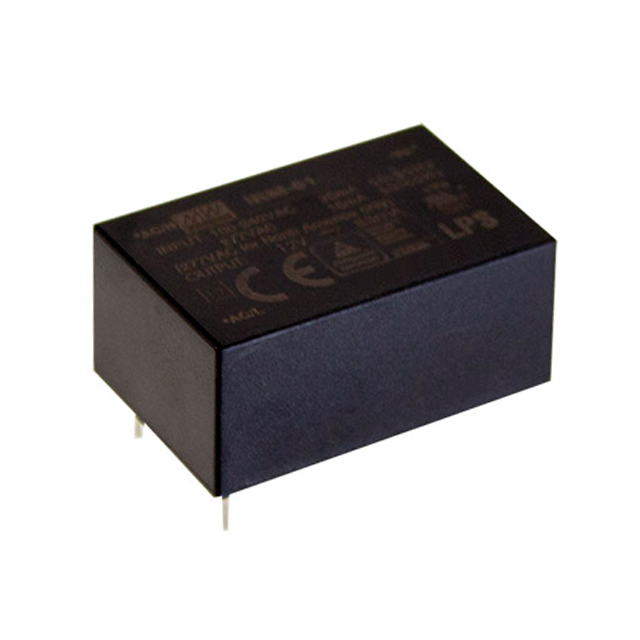

MEAN WELL USA Inc. IRM-01-15	0.5 %	0.5 %	Through Hole	Enclosed	4-DIP Module	67 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	75 %	ITE (Commercial)	1	15 V
MEAN WELL USA Inc. IRM-01-9S	0.5 %	0.5 %	Surface Mount	Enclosed	24-SMD Module 14 Leads	111 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	72 %	ITE (Commercial)	1	9 V	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-01-24	0.5 %	0.5 %	Through Hole	Enclosed	4-DIP Module	42 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	77 %	ITE (Commercial)	1	24 V
MEAN WELL USA Inc. IRM-01-24S	0.5 %	0.5 %	Surface Mount	Enclosed	24-SMD Module 14 Leads	42 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	77 %	ITE (Commercial)	1	24 V	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-01-5	0.5 %	0.5 %	Through Hole	Enclosed	4-DIP Module	200 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	70 %	ITE (Commercial)	1	5 V
MEAN WELL USA Inc. IRM-01-15S	0.5 %	0.5 %	Surface Mount	Enclosed	24-SMD Module 14 Leads	67 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	75 %	ITE (Commercial)	1	15 V	33.7 mm	0.87 in	1.33 in	22.2 mm	0.63 in	16 mm
MEAN WELL USA Inc. IRM-01-12	0.5 %	0.5 %	Through Hole	Enclosed	4-DIP Module	83 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	74 %	ITE (Commercial)	1	12 V
MEAN WELL USA Inc. IRM-01-9	0.5 %	0.5 %	Through Hole	Enclosed	4-DIP Module	111 mA	Universal Input	CB CE cURus TUV	305 VAC 430 VDC	85 VAC 120 VDC	85 °C	-30 °C	72 %	ITE (Commercial)	1	9 V
