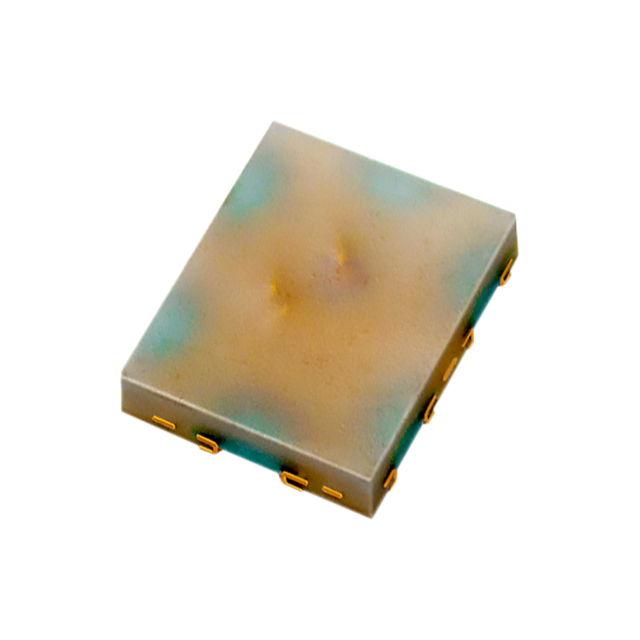

CL-340 Series

Catalog

LED RGB SMD 1.7 X 1.4

Part	Height (Max) [z]	Configuration	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Size [x]	Lens Size [y]	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
Citizen Finedevice Co Ltd CL-340T-SD-T	0.35 mm	Independent	1.7 mm	1.4 mm	6-SMD No Lead	Rectangle with Flat Top	40 mcd	180 mcd	36 mcd	Blue Green Red	470 nm	618 nm	530 nm	1.4 mm	1.7 mm	Surface Mount	2.75 V	2.7 V	1.85 V	5 mA	5 mA	5 mA
