895-074 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 74POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Termination	Mounting Type	Pitch	Pitch	Contact Material	Features	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Number of Positions/Bay/Row	Gender	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Color	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-074-560-503	2	Polyphenylene Sulfide (PPS)	Solder	Board Edge Straddle Mount	0.1 "	2.54 mm	Copper Alloy	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 895-074-555-503	2	Polyphenylene Sulfide (PPS)	Solder	Board Edge Straddle Mount	0.1 "	2.54 mm	Copper Alloy	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm

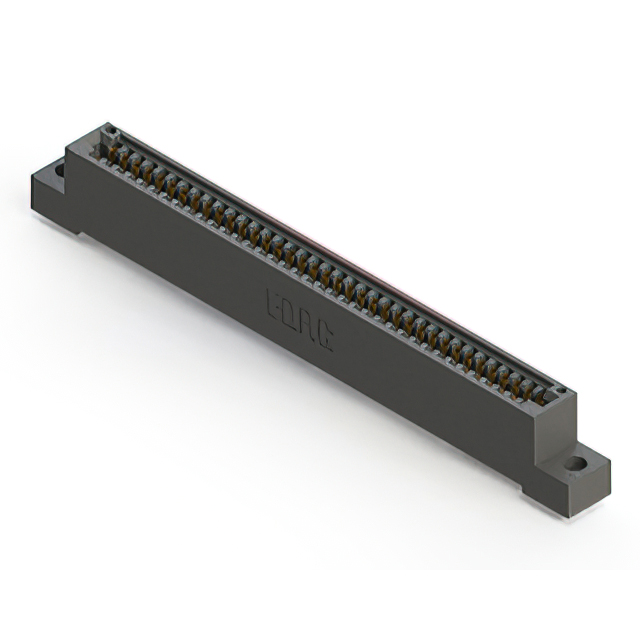

EDAC Inc. 895-074-556-204	2	Polyphenylene Sulfide (PPS)	Solder	Board Edge Straddle Mount	0.1 "	2.54 mm	Copper Alloy	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 895-074-542-512	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm

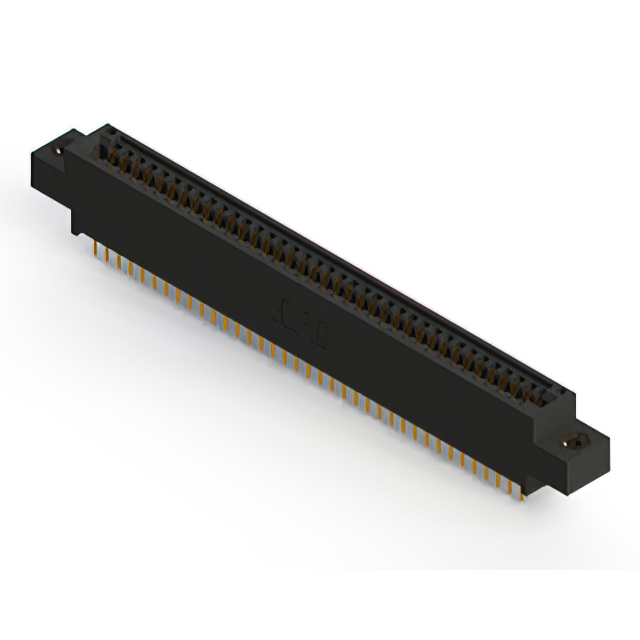

EDAC Inc. 895-074-525-808	2	Polyphenylene Sulfide (PPS)	Solder	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 895-074-540-202	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 895-074-525-803	2	Polyphenylene Sulfide (PPS)	Solder	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
EDAC Inc. 895-074-540-207	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 895-074-500-804	2	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge		0.156 "	3.96 mm
EDAC Inc. 895-074-544-803	2	Polyphenylene Sulfide (PPS)	Wire Wrap	Through Hole	0.1 "	2.54 mm	Copper Alloy		0.07 in 1.78 mm	0.054 in 1.37 mm	74	125 °C	-40 C	2	37	Female	Dual	0.25 Ám	10 Áin	Gold	Cantilever	Black	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm
