M20-998 Series

Catalog

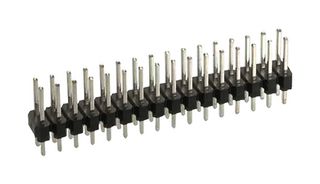

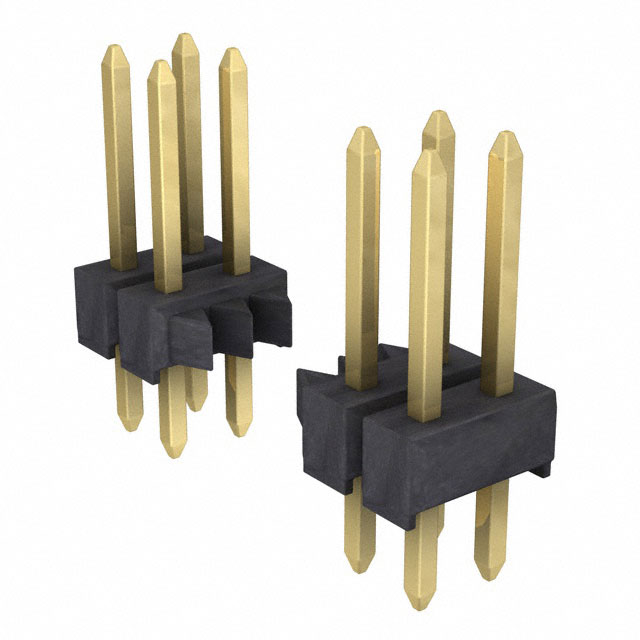

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, HEADER, 72, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Overall Contact Length [x]	Overall Contact Length [x]	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Mounting Type	Material Flammability Rating	Number of Positions	Termination	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Shape	Current Rating (Amps)	Style	Shrouding	Fastening Type	Contact Finish - Mating
Harwin Inc. M20-9983646	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	72	Solder	2	-40 C	105 ░C	Male Pin	All	Tin	0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull
Harwin Inc. M20-9983645	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	72	Solder	2	-40 C	105 ░C	Male Pin	All		0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull	Gold
Harwin Inc. M20-9981246	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	24	Solder	2	-40 C	105 ░C	Male Pin	All	Tin	0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull
Harwin Inc. M20-9982046	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	40	Solder	2	-40 C	105 ░C	Male Pin	All	Tin	0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull
Harwin Inc. M20-9980746	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	14	Solder	2	-40 C	105 ░C	Male Pin	All	Tin	0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull
Harwin Inc. M20-9981545	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	30	Solder	2	-40 C	105 ░C	Male Pin	All		0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull	Gold
Harwin Inc. M20-9982545	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	50	Solder	2	-40 C	105 ░C	Male Pin	All		0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull	Gold
Harwin Inc. M20-9983245	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	64	Solder	2	-40 C	105 ░C	Male Pin	All		0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull	Gold
Harwin Inc. M20-9980346	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	6	Solder	2	-40 C	105 ░C	Male Pin	All	Tin	0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull
Harwin Inc. M20-9980646	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Header Cuttable	0.46 in	11.68 mm	0.1 "	2.54 mm	Black	Brass	0.1 in	2.54 mm	0.24 in	6.1 mm	Nylon 6T Polyamide (PA6T)	Through Hole	UL94 V-0	12	Solder	2	-40 C	105 ░C	Male Pin	All	Tin	0.118 in	3 mm	Square	3 A	Board to Board Cable	Unshrouded	Push-Pull
