HCPL-814 Series

Catalog

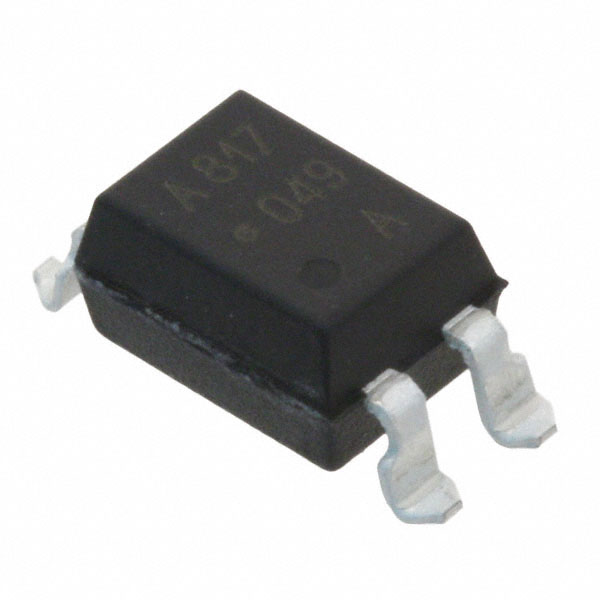

OPTOISOLATOR 5KV TRANSISTOR 4SMD

Part	Current - Output / Channel [custom]	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Transfer Ratio (Min)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Supplier Device Package	Current Transfer Ratio (Max) [Max]	Mounting Type	Voltage - Output (Max) [Max]	Package / Case	Number of Channels [custom]	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]	Package / Case	Package / Case
Broadcom Limited HCPL-814-36AE	50 mA	200 mV	50 mA	-30 ░C	100 °C	50 %	4 µs	3 µs	Transistor	4-SMD	150 %	Surface Mount	35 V	4-SMD Gull Wing	1
Broadcom Limited HCPL-814-500E	50 mA	200 mV	50 mA	-30 ░C	100 °C		4 µs	3 µs	Transistor	4-SMD		Surface Mount	35 V	4-SMD Gull Wing	1	300 %	20 %
Broadcom Limited HCPL-814-300E	50 mA	200 mV	50 mA	-30 ░C	100 °C		4 µs	3 µs	Transistor	4-SMD		Surface Mount	35 V	4-SMD Gull Wing	1	300 %	20 %
Broadcom Limited HCPL-814-56AE	50 mA	200 mV	50 mA	-30 ░C	100 °C	50 %	4 µs	3 µs	Transistor	4-SMD	150 %	Surface Mount	35 V	4-SMD Gull Wing	1
Broadcom Limited HCPL-814-060E	50 mA	200 mV	50 mA	-30 ░C	100 °C		4 µs	3 µs	Transistor	4-DIP		Through Hole	35 V	4-DIP	1	300 %	20 %	0.3 in	7.62 mm
Broadcom Limited HCPL-814-06AE	50 mA	200 mV	50 mA	-30 ░C	100 °C	50 %	4 µs	3 µs	Transistor	4-DIP	150 %	Through Hole	35 V	4-DIP	1			0.3 in	7.62 mm
Broadcom Limited HCPL-814-560E	50 mA	200 mV	50 mA	-30 ░C	100 °C		4 µs	3 µs	Transistor	4-SMD		Surface Mount	35 V	4-SMD Gull Wing	1	300 %	20 %
Broadcom Limited HCPL-814-000E	50 mA	200 mV	50 mA	-30 ░C	100 °C		4 µs	3 µs	Transistor	4-DIP		Through Hole	35 V	4-DIP	1	300 %	20 %	0.3 in	7.62 mm
Broadcom Limited HCPL-814-W6AE	50 mA	200 mV	50 mA	-30 ░C	100 °C	50 %	4 µs	3 µs	Transistor	4-DIP	150 %	Through Hole	35 V	4-DIP (0.400" 10.16mm)	1
