G3R45 Series

Catalog

SIC MOSFET N-CH 61A TO247-3

Part	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Rds On (Max) @ Id, Vgs	FET Type	Drain to Source Voltage (Vdss)	Power Dissipation (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Supplier Device Package
GeneSiC Semiconductor G3R45MT17D	182 nC	TO-247-3	58 mOhm	N-Channel	1700 V	438 W	15 V	15 V	175 °C	-55 °C	2.7 V	61 A	4523 pF	Through Hole	TO-247-3

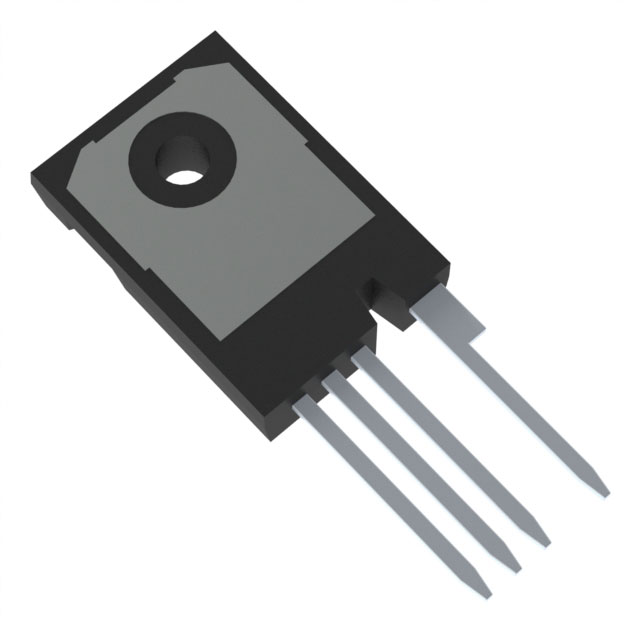

GeneSiC Semiconductor G3R45MT17K	182 nC	TO-247-4	58 mOhm	N-Channel	1700 V	438 W	15 V	15 V	175 °C	-55 °C	2.7 V	61 A	4523 pF	Through Hole	TO-247-4
