WL12G Series

Catalog

SENSOR RETROREFLECTVE 4M NPN/PNP

Part	Adjustment Type	Sensing Method	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Connection Method	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance

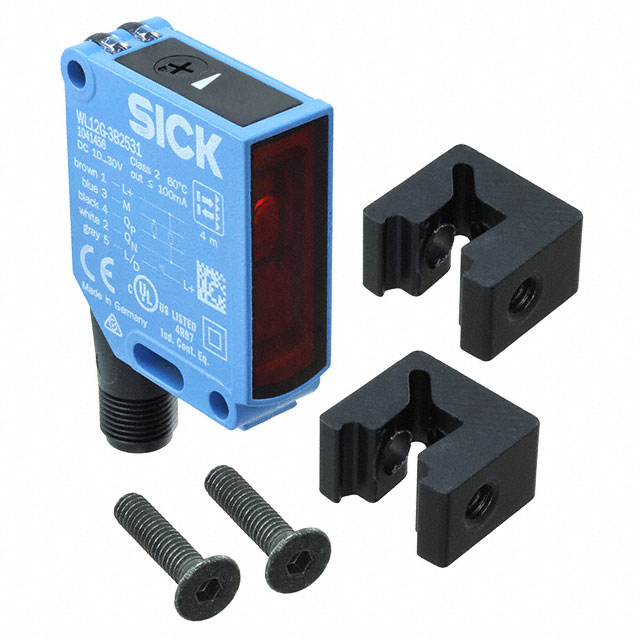

SICK, Inc. 1041456	11-Turn Potentiometer Adjustable	Retroreflective	NPN/PNP - Dark-ON/Light-ON - Selectable	60 °C	-40 C	IP66 IP67 IP69K	330 µs	157.48 "	0 "	Connector M12 5POS	Red LED	10 VDC	30 VDC
SICK, Inc. 1053536	Adjustable	Retroreflective	PNP	60 °C	-40 °C		333 µs			Connector M12	Infrared (880nm)	10 VDC	30 VDC	157.48 in	4 m
SICK, Inc. 1053537	Adjustable	Retroreflective	PNP	60 °C	-40 °C		333 µs			Connector M12	Red (660nm)	10 VDC	30 VDC	157.48 in	4 m
SICK, Inc. 1053538	Adjustable	Retroreflective	NPN	60 °C	-40 °C		333 µs			Connector M12	Red (660nm)	10 VDC	30 VDC	157.48 in	4 m
SICK, Inc. 1053542	Adjustable	Retroreflective	PNP	60 °C	-40 °C		333 µs			Connector M12	Red (660nm)	10 VDC	30 VDC	157.48 in	4 m
SICK, Inc. 1053546	Adjustable	Retroreflective	PNP	60 °C	-40 °C		333 µs			Connector M12	Red (660nm)	10 VDC	30 VDC	157.48 in	4 m
