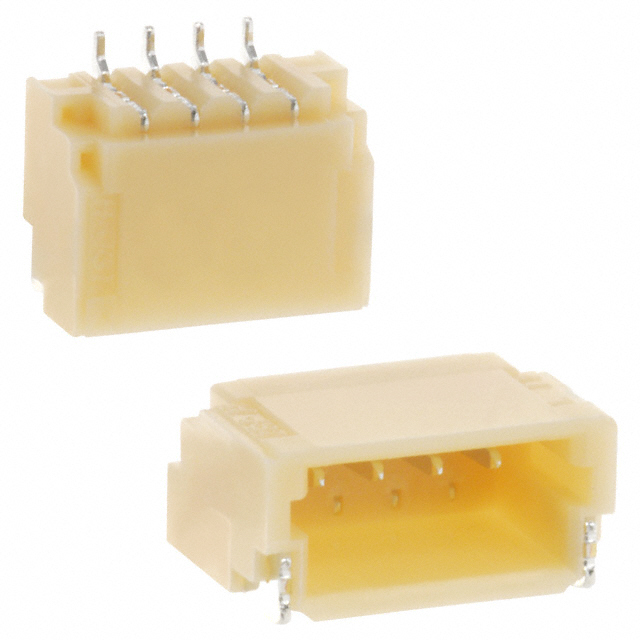

SM04B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 4POS 1MM
| Part | Voltage Rating | Material Flammability Rating | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Fastening Type | Contact Material | Insulation Color | Number of Positions | Number of Rows | Termination | Contact Shape | Connector Type | Insulation Material | Contact Finish - Post | Mounting Type | Number of Positions Loaded | Features | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 V | UL94 V-0 | 0.114 in | 2.9 mm | 1 mm | 0.039 in | Male Pin | 85 °C | -25 °C | Shrouded - 4 Wall | Push-Pull | Copper Alloy | Natural | 4 | 1 | Solder | Square | Header | Nylon Polyamide (PA) | Tin | Right Angle Surface Mount | All | Solder Retention | Board to Cable/Wire |
