NCV8537 Series

Catalog

LINEAR VOLTAGE REGULATOR, LDO, HIGH ACCURACY, 500 MA, WITH POWER GOOD FUNCTION/ REEL

Part	Output Type	Qualification	Grade	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	Voltage - Input (Max) [Max]	Control Features	Current - Quiescent (Iq)	Supplier Device Package	Current - Supply (Max) [Max]	Output Configuration	Protection Features	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Board Type	Channels per IC	Voltage - Output	Supplied Contents	Regulator Type	Voltage - Output [Min]	Voltage - Output [Max]
ON Semiconductor NCV8537MN330R2G	1.81 mOhm	AEC-Q100	Automotive	Surface Mount	10-VFDFN Exposed Pad	125 °C	-40 °C	500 mA	0.34 V	3.3 V	1	12 V	Enable Power Good	220 µA	10-DFN (3x3)	14 mA	Positive	Over Current Over Temperature Reverse Polarity

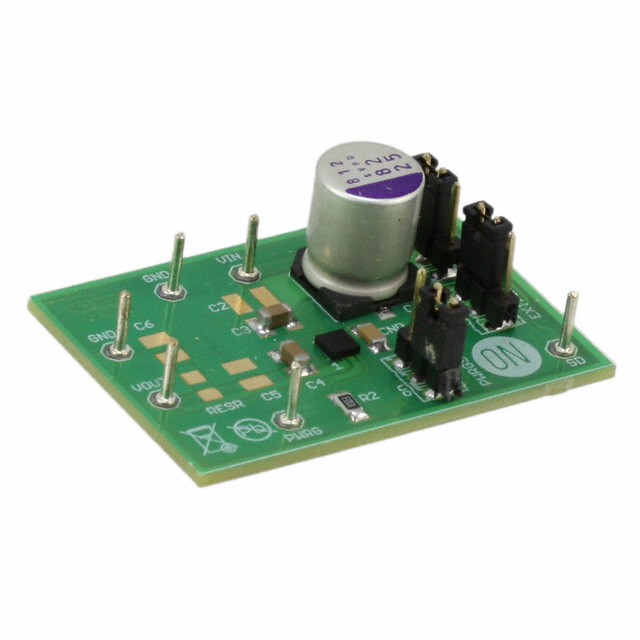

ON Semiconductor NCV8537MN180GEVB								500 mA											2.9 V	12 V	NCV8537	Fully Populated	1 - Single	1.8 V	Board(s)	Positive Fixed
ON Semiconductor NCV8537ML250R2G	1.81 mOhm	AEC-Q100	Automotive	Surface Mount Wettable Flank	10-VFDFN Exposed Pad	125 °C	-40 °C	500 mA	0.34 V	2.5 V	1	12 V	Enable Power Good	220 µA	10-DFNW (3x3)	14 mA	Positive	Over Current Over Temperature Reverse Polarity

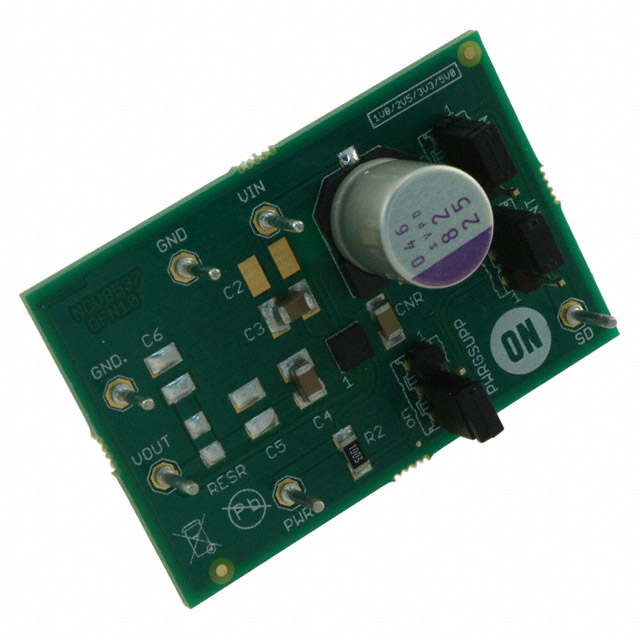

ON Semiconductor NCV8537MN500GEVB								500 mA											2.9 V	12 V	NCV8537	Fully Populated	1 - Single	5 V	Board(s)	Positive Fixed
ON Semiconductor NCV8537MN330GEVB								500 mA											2.9 V	12 V	NCV8537	Fully Populated	1 - Single	3.3 V	Board(s)	Positive Fixed
ON Semiconductor NCV8537ML180R2G	1.81 mOhm	AEC-Q100	Automotive	Surface Mount Wettable Flank	10-VFDFN Exposed Pad	125 °C	-40 °C	500 mA	0.62 V	1.8 V	1	12 V	Enable Power Good	220 µA	10-DFNW (3x3)	14 mA	Positive	Over Current Over Temperature Reverse Polarity

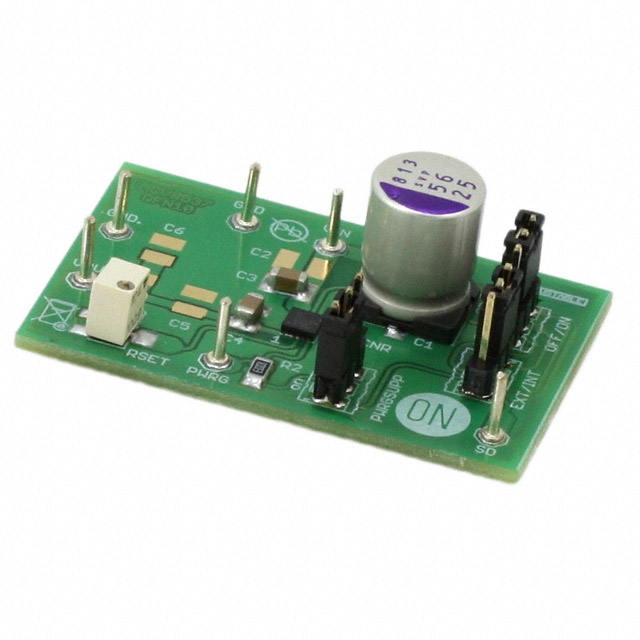

ON Semiconductor NCV8537MNADJGEVB								500 mA											2.9 V	12 V	NCV8537	Fully Populated	1 - Single		Board(s)	Positive Adjustable	1.25 V	10 V
ON Semiconductor NCV8537MN250R2G	1.81 mOhm	AEC-Q100	Automotive	Surface Mount	10-VFDFN Exposed Pad	125 °C	-40 °C	500 mA	0.34 V	2.5 V	1	12 V	Enable Power Good	220 µA	10-DFN (3x3)	14 mA	Positive	Over Current Over Temperature Reverse Polarity
