3127 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

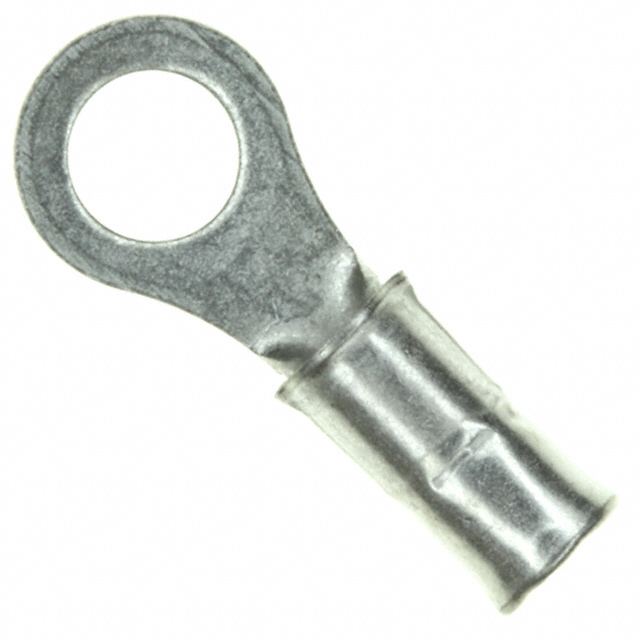

CONN RING CIRC 16-22AWG #8 CRIMP
| Part | Width - Outer Edges [y] | Width - Outer Edges [y] | Features | Length - Overall | Length - Overall [x] | Stud/Tab Size | Mounting Type | Contact Material | Insulation | Thickness | Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 7.14 mm | 0.281 in | Serrated Termination | 18.49 mm | 0.728 in | 8 Stud | Free Hanging (In-Line) | Copper | Non-Insulated | 0.031 in | 0.79 mm | 22 AWG | 16 AWG | Circular | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | Crimp | Tin |
