9CRE0412 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

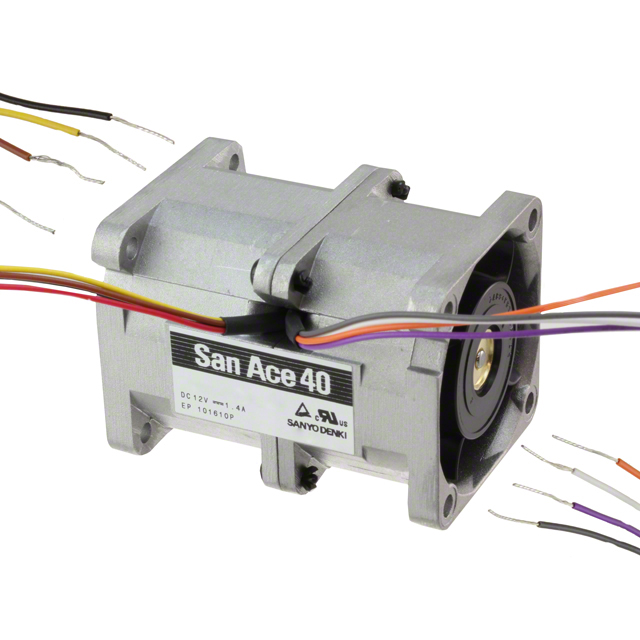

FAN AXIAL DUAL 40X56MM 12VDC
| Part | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Noise | Power (Watts) | Width [y] | RPM [custom] | RPM [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Termination | Features | Voltage - Rated | Bearing Type | Approval Agency | Fan Type | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | Aluminum | 10.8 VDC | 13.2 VDC | 1.4 A | 40000 Hrs | 0.89 m³/min | 31.8 CFM | 62 dB(A) | 16.8 W | 56 mm | 12200 RPM | 15800 RPM | -20 ░C | 70 °C | 40 mm | 40 mm | 4 | Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | Ball | cURus TUV | Tubeaxial (Dual) | 110.22 g | 0.243 lb |
