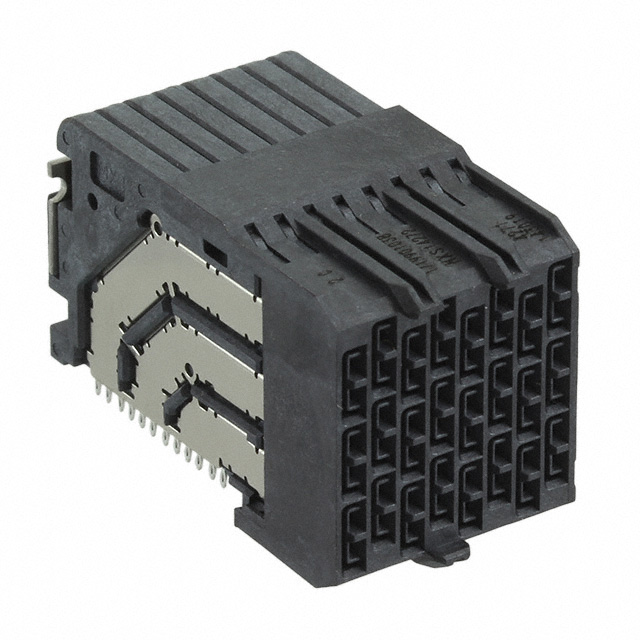

Impel 90 Ohm 3 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 48 Circuits, Plated Through Hole Dimension 0.36mm
Impel 90 Ohm 3 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 48 Circuits, Plated Through Hole Dimension 0.36mm
Impel 90 Ohm 3 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 48 Circuits, Plated Through Hole Dimension 0.36mm
| Part | Voltage Rating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Layout, Typical | Pitch | Pitch | Contact Finish | Number of Columns | Number of Positions Loaded | Color | Features | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Connector Style | Connector Usage | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 150 VDC | UL94 V-0 | -40 C | 105 ░C | Right Angle Through Hole | 24 Differential Pairs | 1.9 mm | 0.075 in | Gold | 8 | All | Black | Shielded | 9 | 30 Áin | 0.76 Ám | Blade Sockets Female Sockets Receptacle | Impel™ | Daughtercard | Press-Fit |
