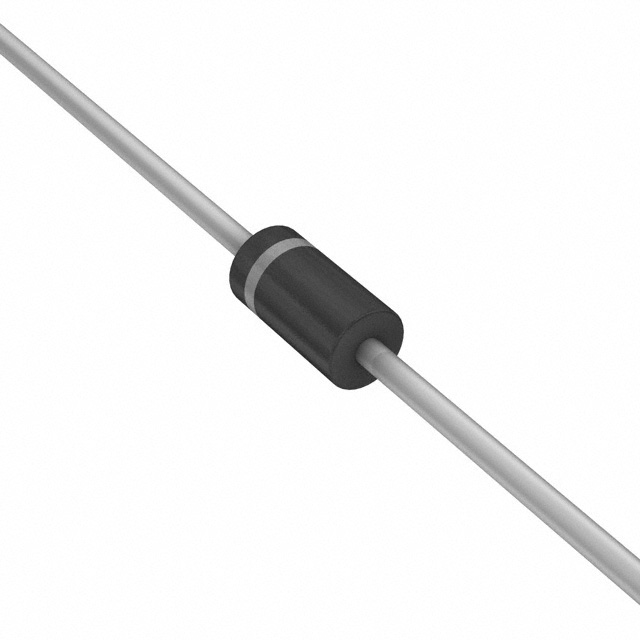

6.2 V, 3.0 W SUR30 Zener Diode Voltage Regulator
Key Features
• Surge Rating of 98 W @ 1 ms
• Zener Voltage Range - 6.2 V to 18 V
• Maximum Limits Guaranteed on up to Six Electrical Parameters
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Package No Larger than the Conventional 1 Watt
• CASE: Void free, transfer-molded, thermosetting plastic
• FINISH: All external surfaces are corrosion resistant and leads are readily solderable
• MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230C, 1/16, from the case for 10 seconds
• POLARITY: Cathode indicated by polarity band
• MOUNTING POSITION: Any
• These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.
Description
AI
This is a complete series of 3.0 Watt Zener diodes with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.
