2823402 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,MTE HDR,SRVT,2.8,0.76AU,T

Part	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Type	Connector Type	Termination	Contact Finish - Post	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Voltage Rating	Number of Positions	Fastening Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Style	Number of Rows	Material Flammability Rating	Insulation Material	Shrouding	Current Rating (Amps)	Mounting Type	Insulation Height [custom]	Insulation Height [custom]

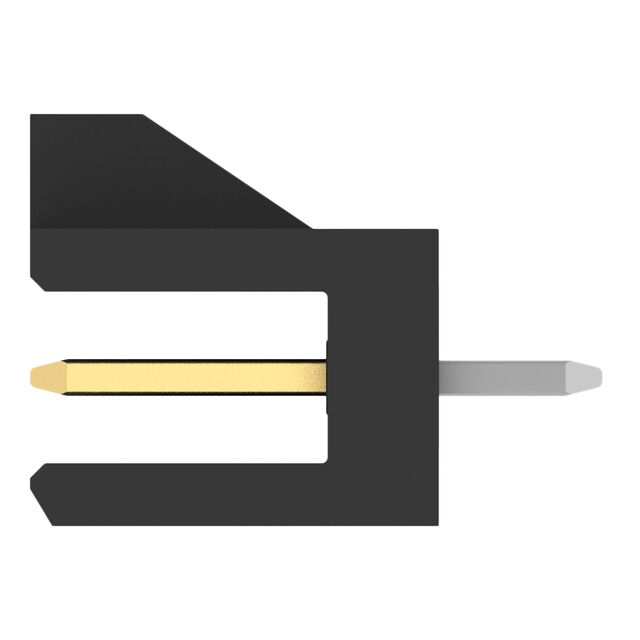

TE Connectivity Raychem Cable Protection 2823402-8	4 mm	0.157 in	30 Áin	0.76 Ám	Square	Male Pin	Header	Solder	Tin	Gold	Phosphor Bronze	All	125 VAC	8	Push-Pull	Black	0.079 in	2 mm	0.217 "	5.5 mm	125 °C	-40 °C	0.11 in	2.8 mm	157.5 Áin	4 Ám	Pick and Place	Board to Cable/Wire	1	UL94 V-0	Thermoplastic	Shrouded - 2 Wall	2 A	Through Hole

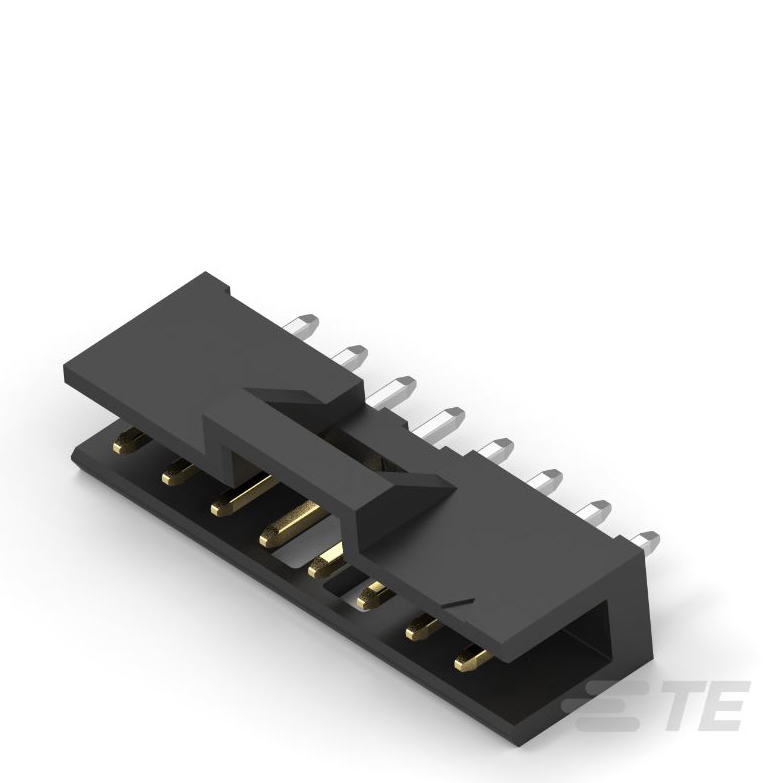

TE Connectivity Raychem Cable Protection 1-2823402-5	4 mm	0.157 in	30 Áin	0.76 Ám	Square	Male Pin	Header	Solder	Tin	Gold	Phosphor Bronze	All	125 VAC	15	Push-Pull	Black	0.079 in	2 mm			125 °C	-40 °C	0.11 in	2.8 mm	157.5 Áin	4 Ám		Board to Board Cable	1	UL94 V-0	Thermoplastic	Shrouded - 2 Wall	2 A	Through Hole	5.51 mm	0.217 in

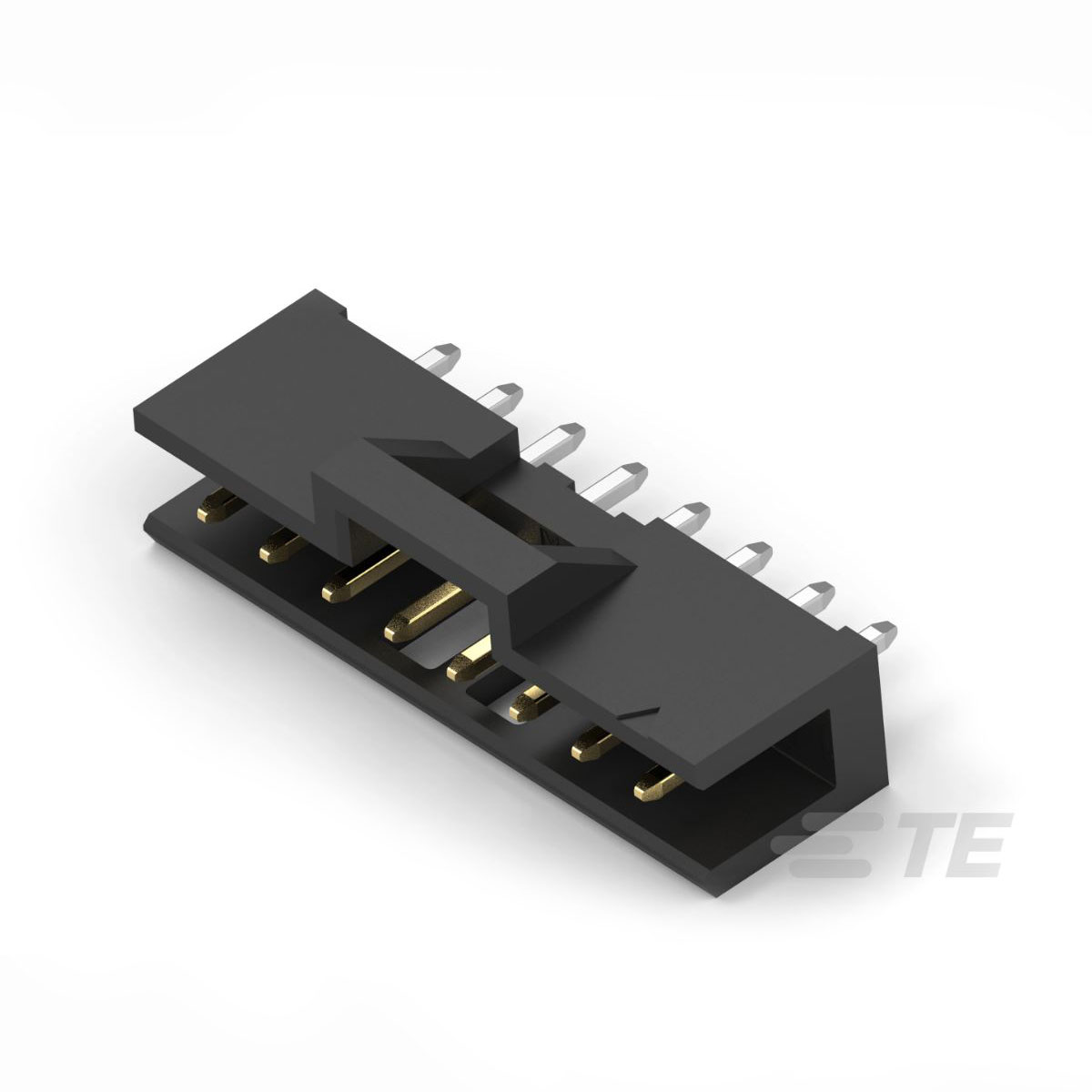

TE Connectivity Raychem Cable Protection 1-2823402-1	4 mm	0.157 in	30 Áin	0.76 Ám	Square	Male Pin	Header	Solder	Tin	Gold	Phosphor Bronze	All	125 VAC	11	Push-Pull	Black	0.079 in	2 mm			125 °C	-40 °C	0.11 in	2.8 mm	157.5 Áin	4 Ám		Board to Board Cable	1	UL94 V-0	Thermoplastic	Shrouded - 2 Wall	2 A	Through Hole	5.51 mm	0.217 in

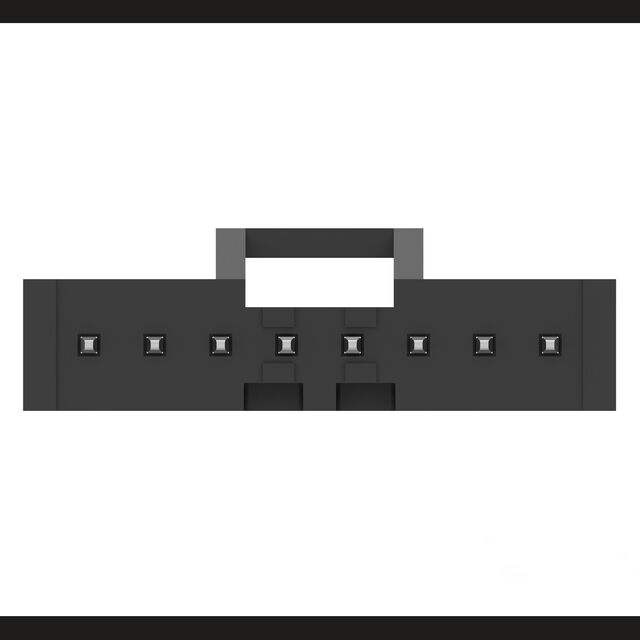

TE Connectivity Raychem Cable Protection 1-2823402-2	4 mm	0.157 in	30 Áin	0.76 Ám	Square	Male Pin	Header	Solder	Tin	Gold	Phosphor Bronze	All	125 VAC	12	Push-Pull	Black	0.079 in	2 mm	0.217 "	5.5 mm	125 °C	-40 °C	0.11 in	2.8 mm	157.5 Áin	4 Ám	Pick and Place	Board to Cable/Wire	1	UL94 V-0	Thermoplastic	Shrouded - 2 Wall	2 A	Through Hole

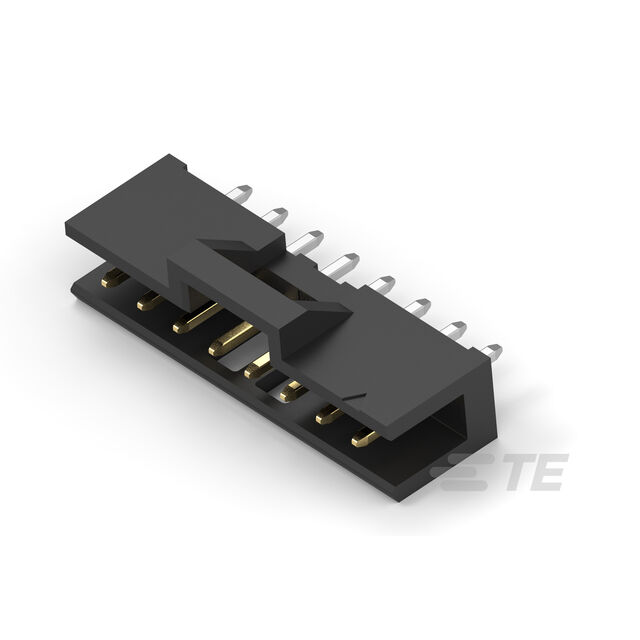

TE Connectivity Raychem Cable Protection 2823402-9	4 mm	0.157 in	30 Áin	0.76 Ám	Square	Male Pin	Header	Solder	Tin	Gold	Phosphor Bronze	All	125 VAC	9	Push-Pull	Black	0.079 in	2 mm			125 °C	-40 °C	0.11 in	2.8 mm	157.5 Áin	4 Ám		Board to Board Cable	1	UL94 V-0	Thermoplastic	Shrouded - 2 Wall	2 A	Through Hole	5.51 mm	0.217 in
