LEX3114 Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 26-34MM 1 1/4" NPT

Part	Thread Length [x]	Thread Length [x]	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min)	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Thread Length	Thread Length	Includes	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]

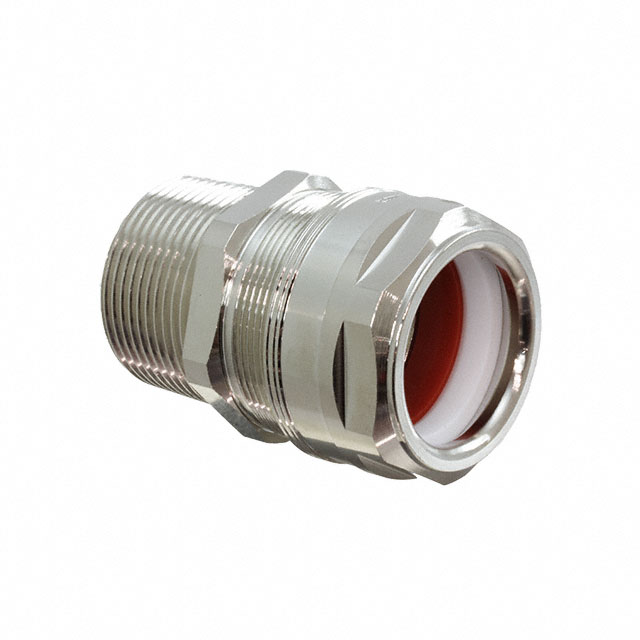

Pflitsch LEX3114MSHTS	26 mm	1.024 in	Brass Nickel Plated	1.024 in	26 mm	IP66 IP68	34 mm	1.339 in		Cable Gland	-60 °C	130 °C	Silver	1.024 in	26 mm

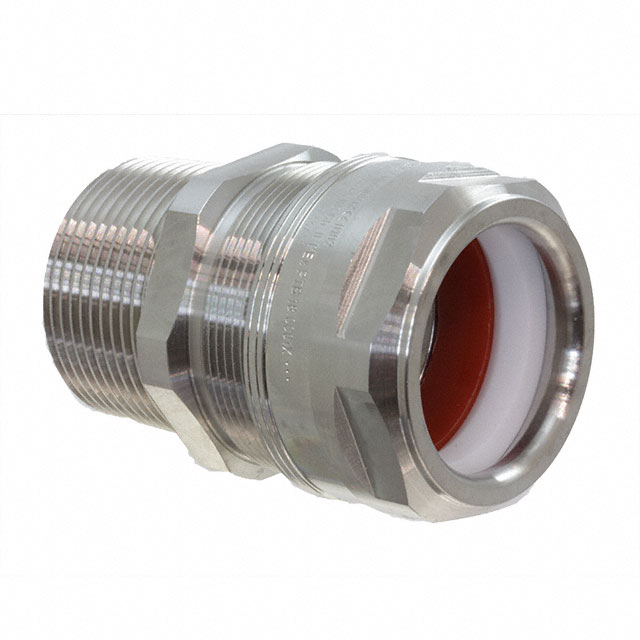

Pflitsch LEX3114VA/316LHTS			Stainless Steel			IP66 IP68				Cable Gland	-60 °C	130 °C	Silver	1.024 in	26 mm	Sealing Ring	35 mm	1.378 in	25.91 mm	1.02 in	34.04 mm	1.34 in
