09620250 Series
Manufacturer: HARTING
Beta
⌘K
HAN EMC 25 BASE PANEL ROHS COMPLIANT: NA
| Part | Size | Housing Material | Lock Location | Connector Type | Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

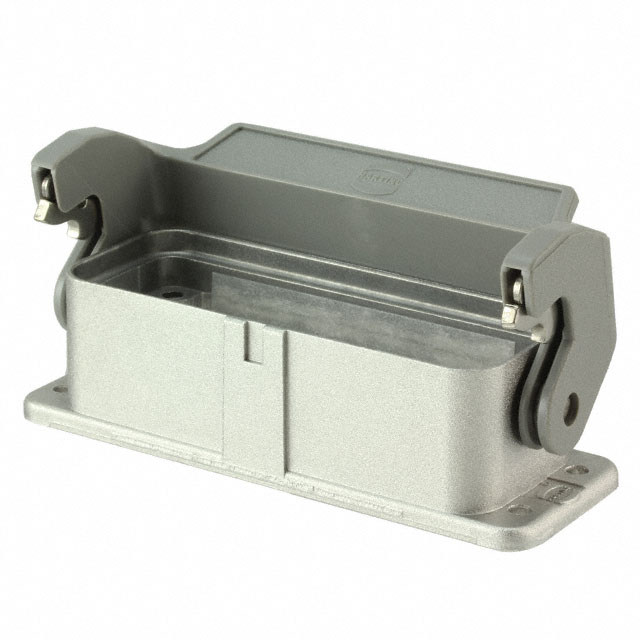

 HARTING | 16 A | Aluminum Die Cast | Locking Clip (1) on Base Bottom | Base - Panel Mount | Bottom Entry | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | ||||||||

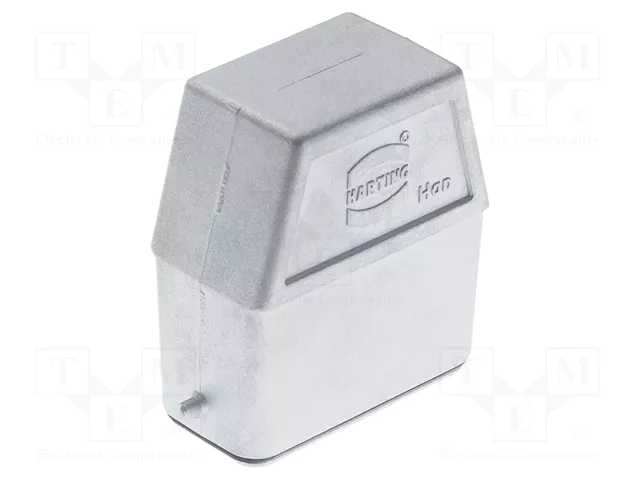

 HARTING | 16 A | Aluminum Die Cast | Locking Clip (1) on Base Bottom | Hood | Side Entry | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | PG21 | 79.9 mm | 30.5 mm | 70 mm | 2.756 " | 3.146 " | 1.201 " | |

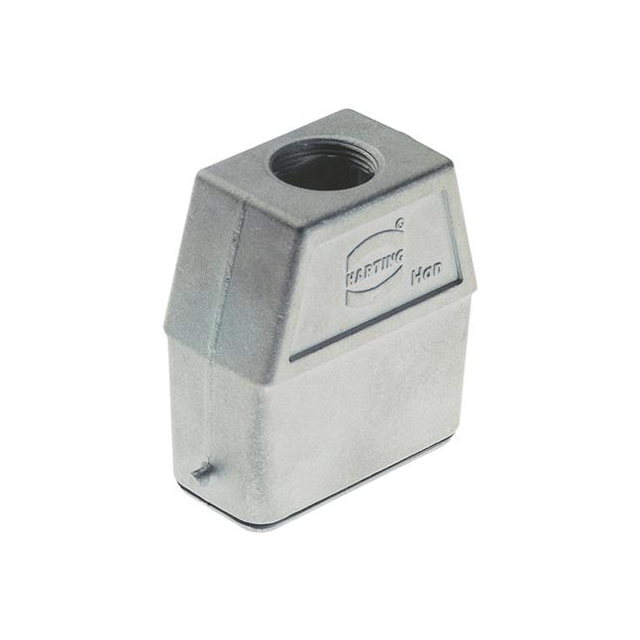

 HARTING | 16 A | Aluminum Die Cast | Locking Clip (1) on Base Bottom | Hood | Top Entry | IP65 - Dust Tight Water Resistant | 125 °C | -40 C | PG16 | 79.9 mm | 30.5 mm | 70 mm | 2.756 " | 3.146 " | 1.201 " | EMC Coating |
