Terminal Block Interface Modules VIP3/FLK14/8/LED/PLC
Terminal Block Interface Modules VIP3/FLK14/8/LED/PLC
| Part | Current Rating (Per Contact) | Positions / Poles | Operating Temperature [Min] | Operating Temperature [Max] | Control Side Connection | Process Side Connection | Voltage - Rated | Control Side Cable Retainer | Width [x] | Width [x] | Length [x] | Length [x] | Wire Gauge [Max] | Wire Gauge [Min] | Features | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

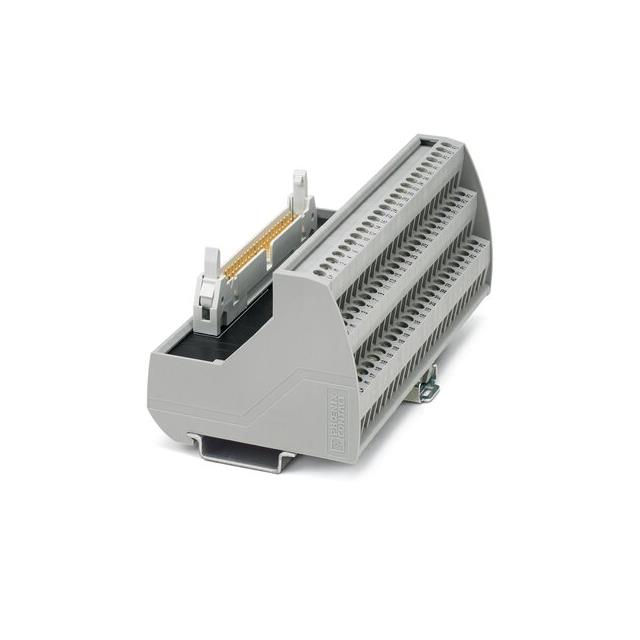

 Phoenix Contact | 1 A | 50 | -20 ░C | 60 °C | Rectangular Male | Terminal Blocks - Screw Connection | 60 VAC | Latches | 2.709 in | 68.8 mm | 5.047 in | 128.2 mm | 24 AWG | 12 AWG | ||
 Phoenix Contact | 2.5 A | 50 | -20 ░C | 50 °C | D-Sub Female | Terminal Blocks - Screw Connection | 24 VDC | Jackscrew Socket | 2.717 in | 69.01 mm | 3.866 in | 98.2 mm | 24 AWG | 12 AWG | LED | |
 Phoenix Contact | 1 A | 15 | -20 ░C | 50 °C | D-Sub Female | Terminal Blocks - Screw Connection | 125 V | Jackscrew Socket | 2.579 in | 65.5 mm | 24 AWG | 12 AWG | ||||

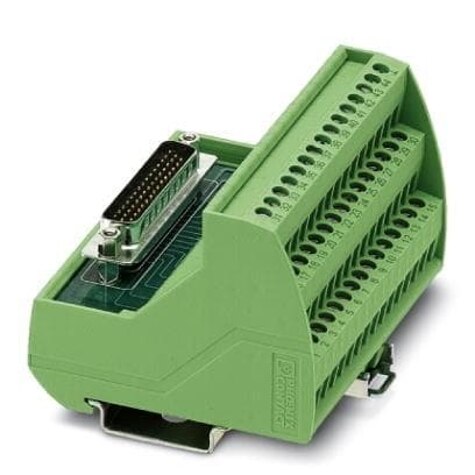

 Phoenix Contact | 2.5 A | 37 | -20 ░C | 50 °C | D-Sub Male | Terminal Blocks - Screw Connection | 24 VDC | Jackscrew Socket | 2.717 in | 69.01 mm | 2.862 in | 72.69 mm | 24 AWG | 12 AWG | LED | |

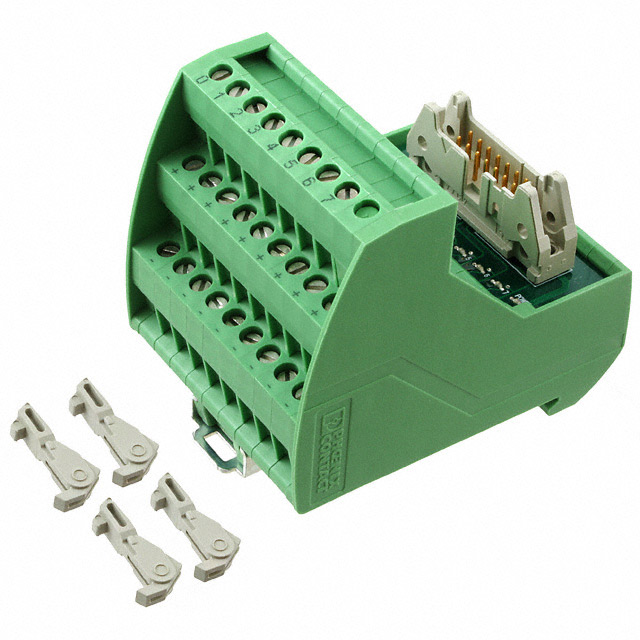

 Phoenix Contact | 1 A | 14 | -20 ░C | 50 °C | Rectangular Male | Terminal Blocks - Screw Connection | Latches | 2.717 in | 69.01 mm | 2.059 in | 24 AWG | 12 AWG | 52.3 mm |
