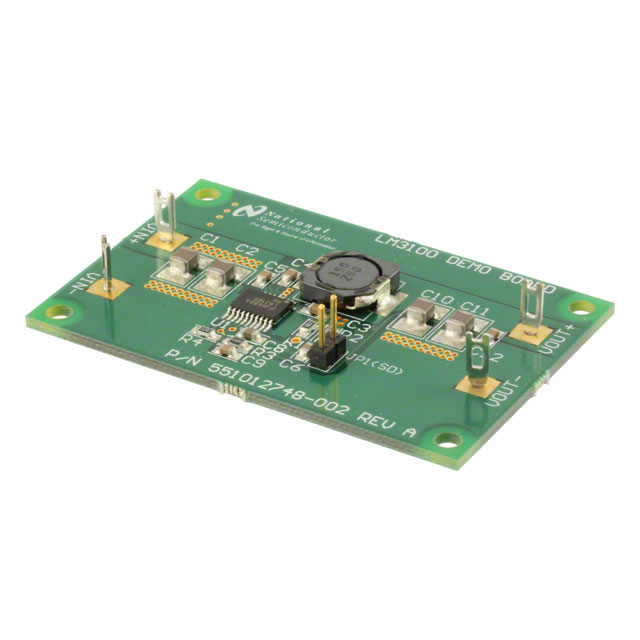

Synchronous 1MHz 1.5A Step-Down Voltage Regulator
Key Features
• Input Voltage Range 4.5 V to 36 V1.5 A Output Current0.8 V, ±1.5% ReferenceIntegrated 40 V, Dual N-Channel Buck Synchronous SwitchesLow Component Count and Small Solution SizeNo Loop Compensation RequiredUltra-Fast Transient ResponseStable With Ceramic and Other Low ESR CapacitorsProgrammable Switching Frequency up to 1 MHzMax. Duty Cycle Limited During Start-UpValley Current LimitPrecision Internal Reference for Adjustable Output Voltage Down to 0.8 VThermal ShutdownThermally Enhanced HTSSOP-20 PackageInput Voltage Range 4.5 V to 36 V1.5 A Output Current0.8 V, ±1.5% ReferenceIntegrated 40 V, Dual N-Channel Buck Synchronous SwitchesLow Component Count and Small Solution SizeNo Loop Compensation RequiredUltra-Fast Transient ResponseStable With Ceramic and Other Low ESR CapacitorsProgrammable Switching Frequency up to 1 MHzMax. Duty Cycle Limited During Start-UpValley Current LimitPrecision Internal Reference for Adjustable Output Voltage Down to 0.8 VThermal ShutdownThermally Enhanced HTSSOP-20 Package
Description
AI
The LM3100 Synchronously Rectified Buck Converter features all functions needed to implement a highly efficient, cost effective buck regulator capable of supplying 1.5 A to loads with voltages as low as 0.8 V. Dual 40 V N-Channel synchronous MOSFET switches allow for low external component thus reducing complexity and minimizing board space. The LM3100 is designed to work exceptionally well with ceramic and other very low ESR output capacitors. The Constant ON-Time (COT) regulation scheme requires no loop compensation, results in fast load transient response, and simplifies circuit implementation. Through the use of a unique design the regulator does not rely on output capacitor ESR for stability, as do most other COT regulators. The operating frequency remains nearly constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The operating frequency can be externally programmed up to 1 MHz. Protection features include VCCunder-voltage lockout, thermal shutdown and gate drive under-voltage lockout. The part is available in a thermally enhanced HTSSOP-20 package
The LM3100 Synchronously Rectified Buck Converter features all functions needed to implement a highly efficient, cost effective buck regulator capable of supplying 1.5 A to loads with voltages as low as 0.8 V. Dual 40 V N-Channel synchronous MOSFET switches allow for low external component thus reducing complexity and minimizing board space. The LM3100 is designed to work exceptionally well with ceramic and other very low ESR output capacitors. The Constant ON-Time (COT) regulation scheme requires no loop compensation, results in fast load transient response, and simplifies circuit implementation. Through the use of a unique design the regulator does not rely on output capacitor ESR for stability, as do most other COT regulators. The operating frequency remains nearly constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The operating frequency can be externally programmed up to 1 MHz. Protection features include VCCunder-voltage lockout, thermal shutdown and gate drive under-voltage lockout. The part is available in a thermally enhanced HTSSOP-20 package
