0639-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

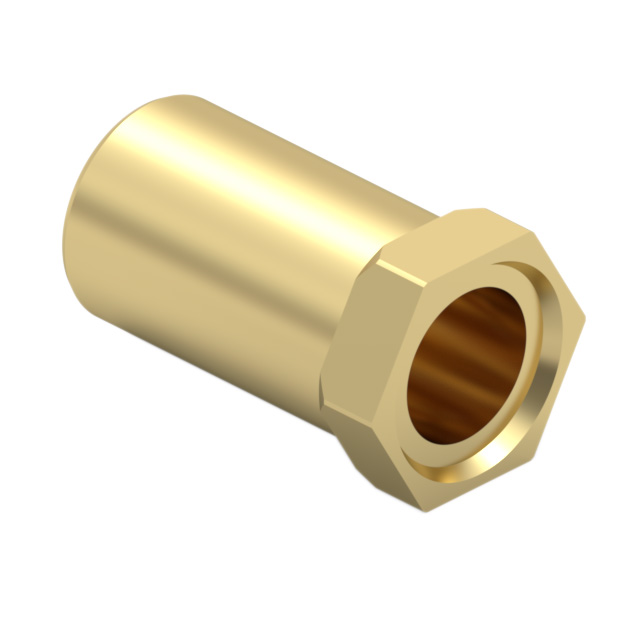

ZERO PROFILE RECEPTACLE FOR LEAD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish | Socket Depth | Socket Depth | Tail Type | Termination | Mounting Hole Diameter | Mounting Hole Diameter | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 3.56 mm | 0.14 in | Beryllium Copper | 30 Áin | 0.76 Ám | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 3.18 mm | 0.125 in | No Tail | Press-Fit | 2.31 mm | 0.091 in | 1.63 mm | 0.064 in | 2.26 mm | 0.089 " |
