629-9W4 Series
Manufacturer: EDAC Inc.
Beta
⌘K

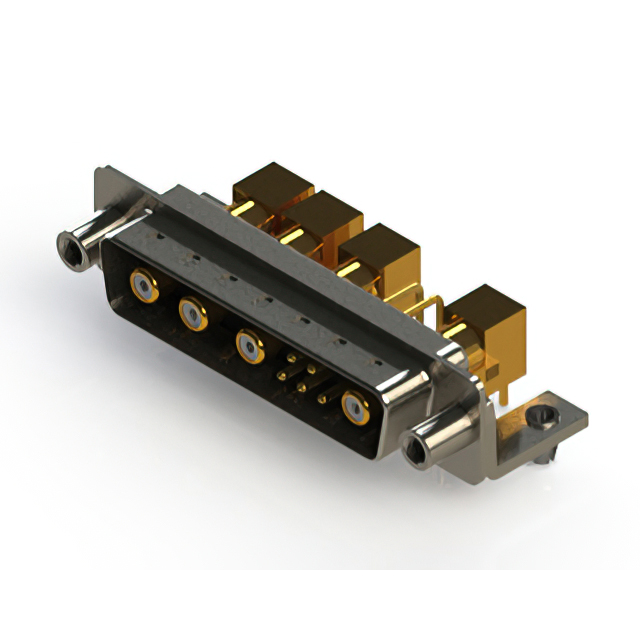

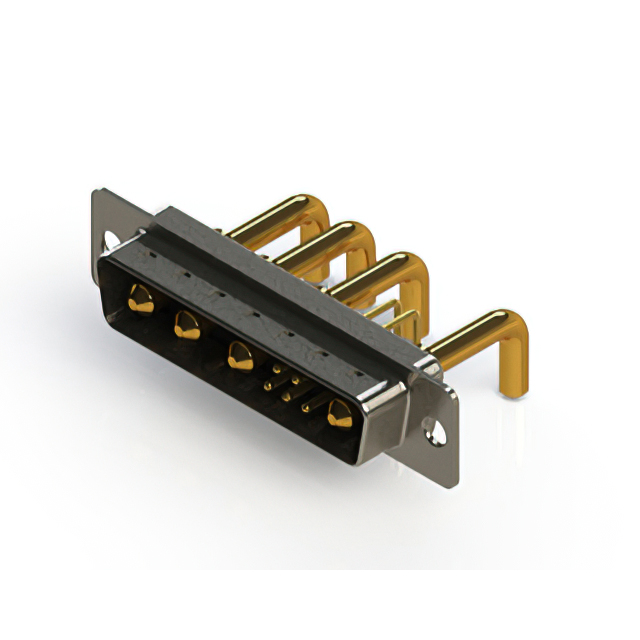

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-9W4, PLUG, 9 CONTACTS, 5 SIGNAL, 4 POWER/COAX
| Part | Voltage Rating | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Material Flammability Rating | Contact Finish | Number of Rows [custom] | Number of Positions [Max] | Number of Positions [custom] | Number of Positions [custom] | Backset Spacing | Backset Spacing | Flange Feature | Mounting Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Connector Style | Contact Type | Features | Connector Type | Contact Finish Thickness | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Flange Feature | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9 | 4 | 5 | 9.4 mm | 0.37 in | 4-40 | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Coax Signal | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Flash | ||||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | 4-40 | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | 20A 5A | 30 Áin | 0.76 Ám | 4 | 5 | |||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | Board Side (M3) | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Grounding Indents | Plug Male Pins | Flash | 4 | 5 | 5 A 40 A | ||||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | Housing/Shell | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Grounding Indents Mounting Brackets | Plug Male Pins | Flash | 4 | 5 | 5 A 30 A | 4-40 | |||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | 4-40 | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Board Lock Grounding Indents | Plug Male Pins | Flash | 20A 5A | 4 | 5 | Nickel Plated Steel | |||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | M3 | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Grounding Indents Mounting Brackets | Plug Male Pins | Flash | 10A 5A | 4 | 5 | Nickel Plated Steel | |||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | Housing/Shell | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Plug Male Pins | 20A 5A | 30 Áin | 0.76 Ám | 4 | 5 | 4-40 | Nickel Plated Steel | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | Housing/Shell | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | 20A 5A | 30 Áin | 0.76 Ám | 4 | 5 | 4-40 | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | M3 | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Grounding Indents Mounting Brackets | Plug Male Pins | 20A 5A | 30 Áin | 0.76 Ám | 4 | 5 | Nickel Plated Steel | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | UL94 V-0 | Gold | 2 | 9.4 mm | 0.37 in | 4-40 | Right Angle Through Hole | Solder | DB B - 9W4 | 3 | Combo D-Sub | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Flash | 20A 5A | 4 | 5 | Nickel Plated Steel |
