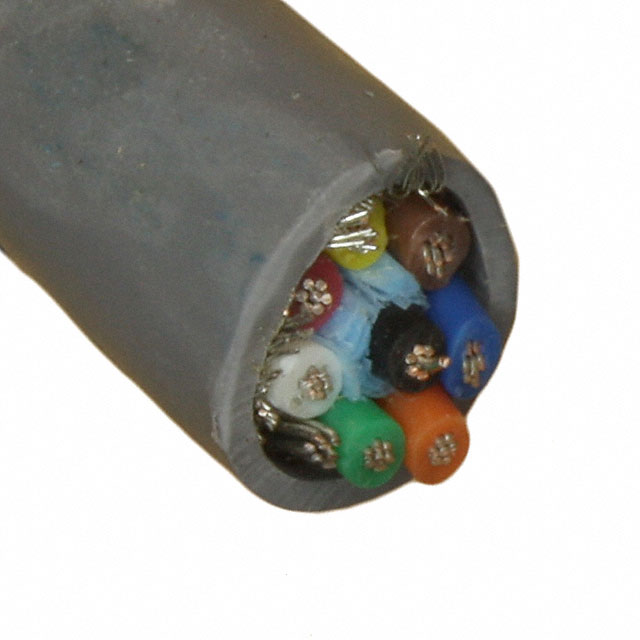

5158C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 8COND 20AWG SHLD 1000=1000'
| Part | Shield Coverage | Shield Material | Ratings | Usage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors [custom] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 UL Style 2464 | Communication Control | Braid Foil | 0.33 in | 8.38 mm | 300 VDC | Copper Tinned | -35 °C | 105 ░C | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 28 AWG | 7 | 8 | 20 AWG | 0.813 mm | 0.032 in | Slate | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 UL Style 2464 | Communication Control | Braid Foil | 0.33 in | 8.38 mm | 300 VDC | Copper Tinned | -35 °C | 105 ░C | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 28 AWG | 7 | 8 | 20 AWG | 0.813 mm | 0.032 in | Slate | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
