842-043 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 43POS 0.100

Part	Material - Insulation	Termination Rows	Contact Material	Contact Type	Mounting Type	Gender	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Card Type	Read Out	Pitch	Pitch	Termination	Number of Rows	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

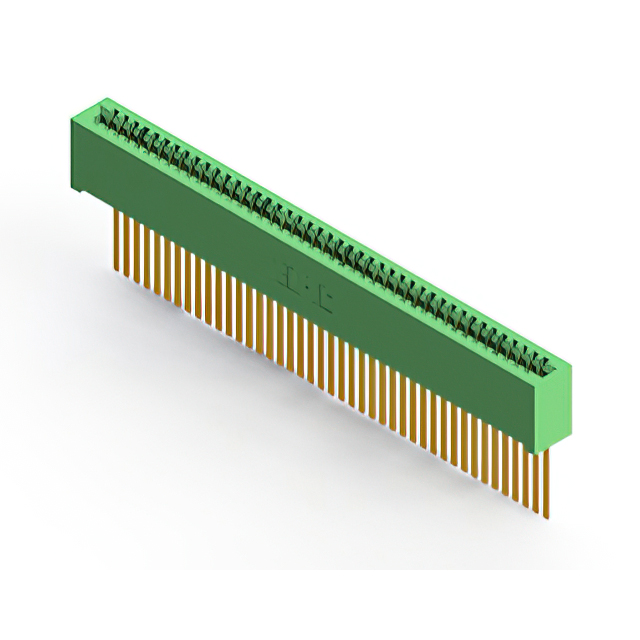

EDAC Inc. 842-043-544-101	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Wire Wrap	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43
EDAC Inc. 842-043-520-108	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Solder	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 842-043-540-112	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Wire Wrap	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm

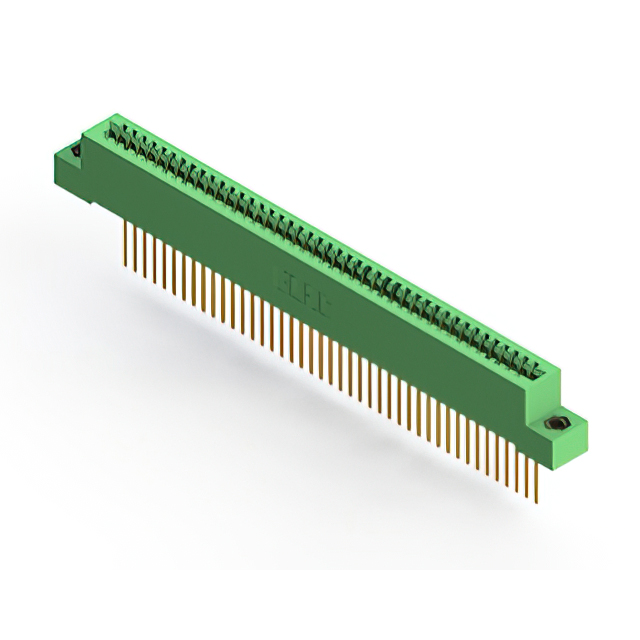

EDAC Inc. 842-043-542-107	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Wire Wrap	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 842-043-540-101	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Wire Wrap	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43

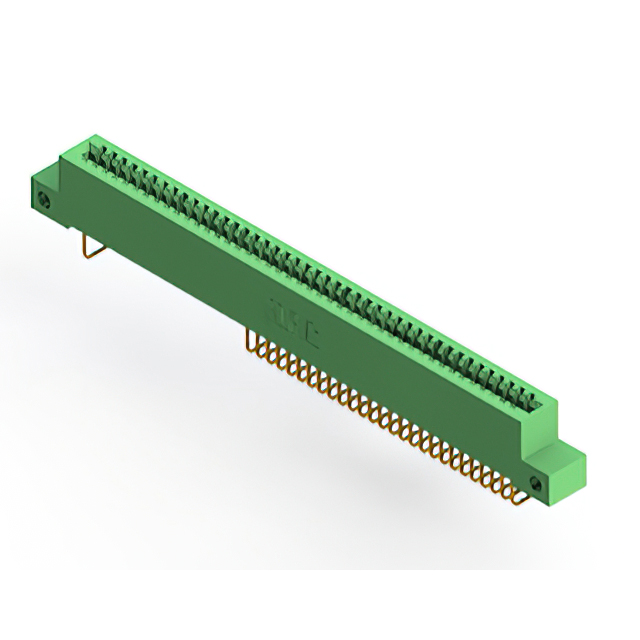

EDAC Inc. 842-043-558-112	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Right Angle Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Solder	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 842-043-558-104	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Right Angle Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Solder	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

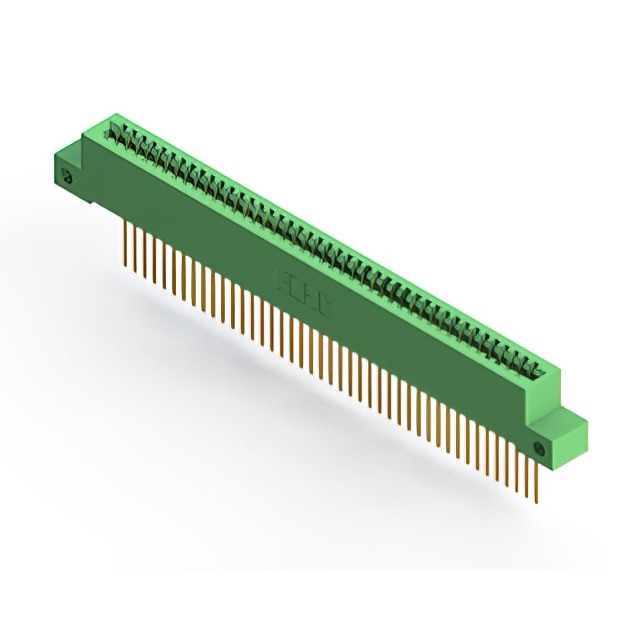

EDAC Inc. 842-043-542-112	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Wire Wrap	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 842-043-500-101	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Solder Eyelet(s)	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43

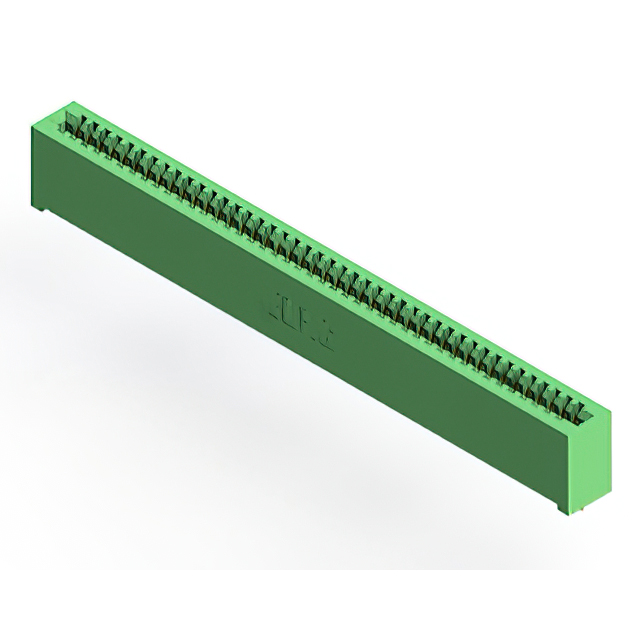

EDAC Inc. 842-043-524-101	Diallyl Phthalate (DAP)	1	Copper Alloy	Cantilever	Through Hole	Female	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.1 "	2.54 mm	Solder	1	43	Green	0.25 Ám	10 Áin	125 °C	-40 C	43
