20ALGR Series
Manufacturer: KEMET
Beta
⌘K

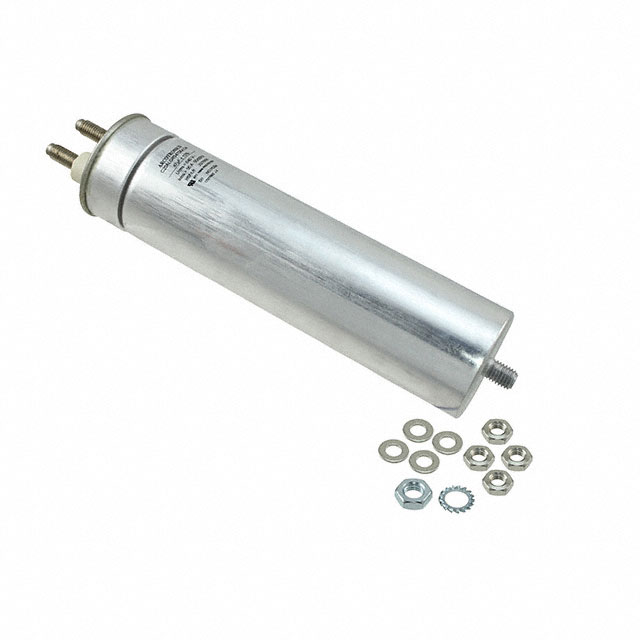

CAP FILM 47UF 10% 1.4KVDC RADIAL
| Part | Voltage Rating - DC | Voltage Rating - DC | ESR (Equivalent Series Resistance) | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lead Spacing | Lead Spacing | Termination | Tolerance | Capacitance | Size / Dimension [diameter] | Size / Dimension [diameter] | Dielectric Material | Voltage Rating - AC | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.4 kV | 1400 V | 1.9 mOhm | -25 °C | 70 °C | Commutation EMI RFI Suppression Power Factor Correction (PFC) | Chassis Stud Mount | Can Radial | 249 mm | 9.803 " | 1.102 in | 28 mm | Threaded Male | 10 % | 47 µF | 2.559 in | 65 mm | Polypropylene (PP) Metallized | 640 V | Long Life |
