091 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 9.5"L X 6.34"W

Part	Weight [custom]	Weight [custom]	Features	Container Type	Thickness	Thickness	Design	Material	Color	Size / Dimension	Size / Dimension	Area (L x W)	Area (L x W)	Material Flammability Rating	Ratings	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]
Serpac 091,AL	236.78 g	0.522 lb	PCB Supports	Box	2.54 mm	0.1 in	Cover Included Hand Held	ABS Plastic	Almond	6.34 in 9.5 in	161.04 mm 241.3 mm	60.2 in²	388 cm²	UL94 HB	IP40 NEMA 1	22.86 mm	0.9 in

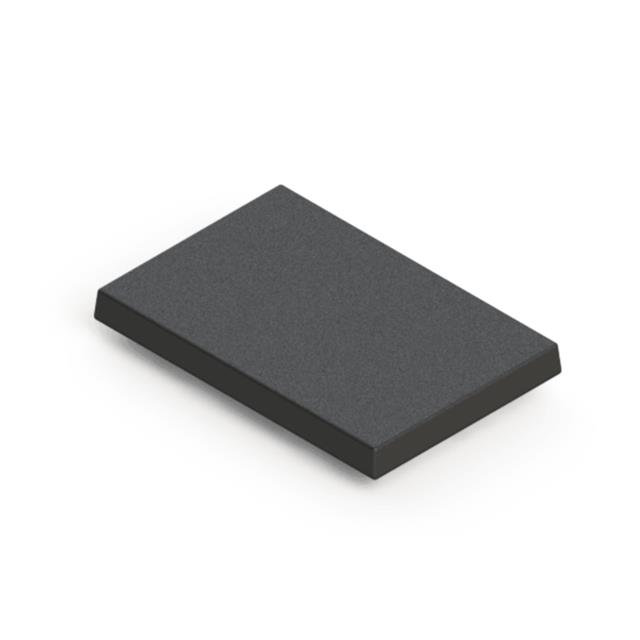

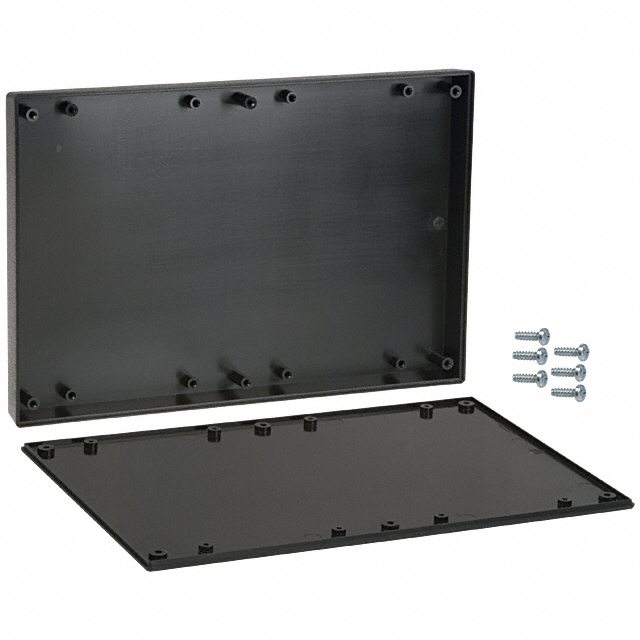

Serpac 091,BK	236.78 g	0.522 lb	PCB Supports	Box	2.54 mm	0.1 in	Cover Included Hand Held	ABS Plastic	Black	6.34 in 9.5 in	161.04 mm 241.3 mm	60.2 in²	388 cm²	UL94 HB	IP40 NEMA 1	22.86 mm	0.9 in

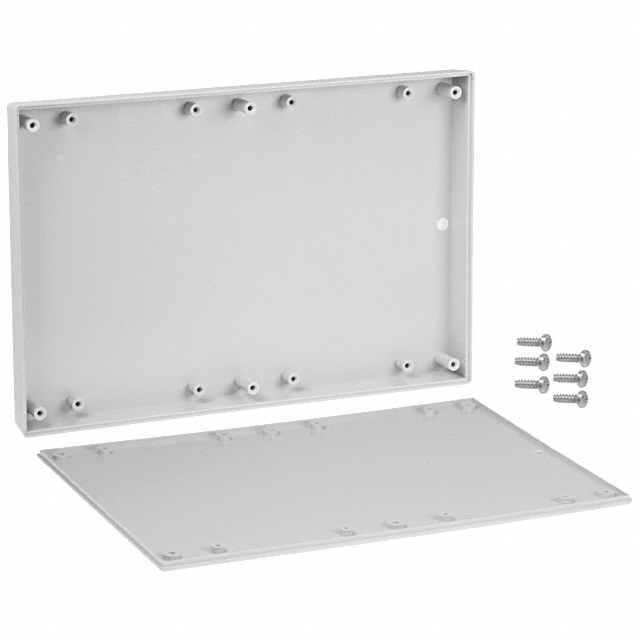

Serpac 091,GY	236.78 g	0.522 lb	PCB Supports	Box	2.54 mm	0.1 in	Cover Included Hand Held	ABS Plastic	Gray	6.34 in 9.5 in	161.04 mm 241.3 mm	60.2 in²	388 cm²	UL94 HB	IP40 NEMA 1	22.86 mm	0.9 in	60.2 in˛	388 cm˛
