5401FE Series
Manufacturer: Belden Inc.
Beta
⌘K

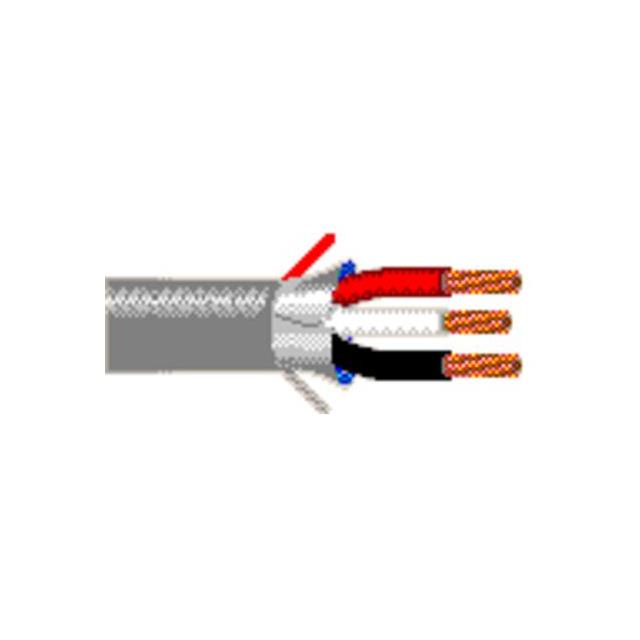

CABLE 3CON 20AWG GRAY SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Ratings | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Length | Length | Features | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Insulation | Wire Gauge | Jacket Color | Conductor Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.149 " | 3.78 mm | 300 VDC | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | 28 AWG | 7 | Security Sound | 304.8 m | 1000 ft | Drain Wire Rip Cord | Foil | 0.017 " | 0.432 mm | 3 | Polypropylene (PP) | 20 AWG | Gray | Copper Bare | Multi-Conductor |
Belden Inc. | Aluminum | 100 % | 0.149 " | 3.78 mm | 300 VDC | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | 28 AWG | 7 | Security Sound | 152.4 m | 500 ft | Drain Wire Rip Cord | Foil | 0.017 " | 0.432 mm | 3 | Polypropylene (PP) | 20 AWG | Gray | Copper Bare | Multi-Conductor |
