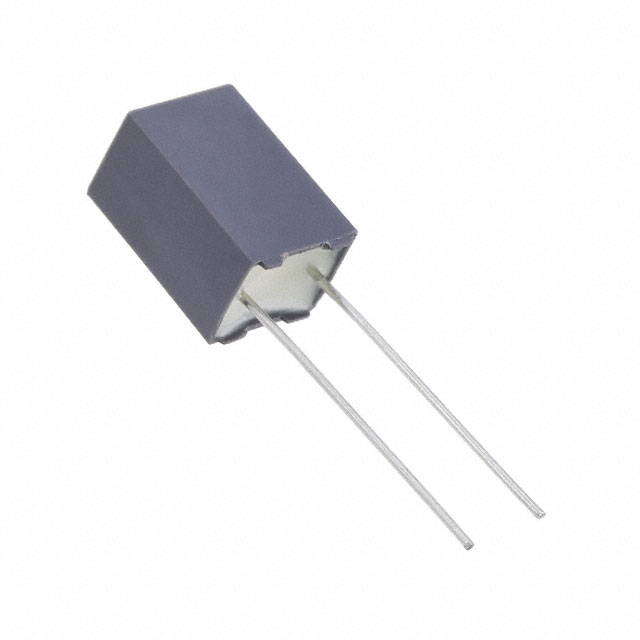

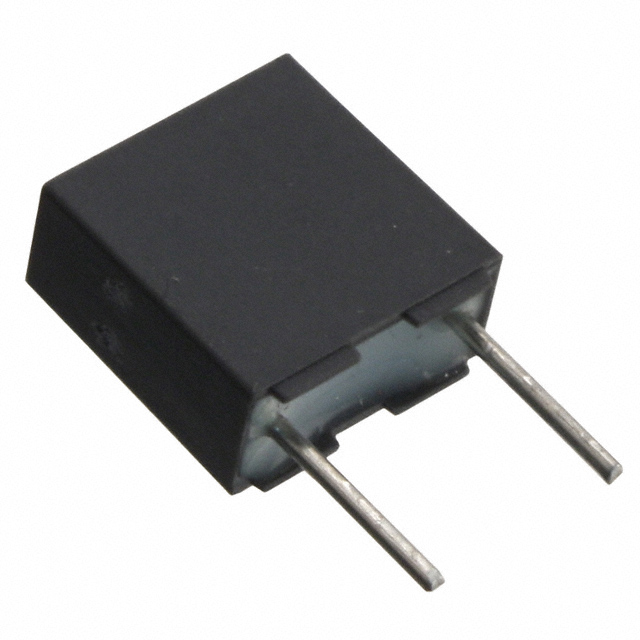

R79MC Series

Manufacturer: KEMET

Catalog

CAP FILM 10000PF 2.5% 400VDC RAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Package / Case	Applications	Termination	Dielectric Material	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R79MC2100DQ40H	-55 C	105 ░C	10000 pF	Through Hole	0.299 in	7.6 mm	400 V	2.5 %	3.5 mm	7.2 mm	0.138 in	0.283 "	0.197 "	5 mm	Radial	High Frequency Switching	PC Pins	Polypropylene (PP) Metallized	200 V
KEMET R79MC2470Z340J	-55 C	105 ░C		Through Hole			400 V	5 %	7.2 mm	7.2 mm	0.283 in	0.283 "	0.197 "	5 mm	Radial	High Frequency Switching	PC Pins	Polypropylene (PP) Metallized	200 V	13.1 mm	0.516 in
