342-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.100

Part	Termination	Card Type	Material - Insulation	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows	Contact Finish	Termination Rows	Color	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Gender	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

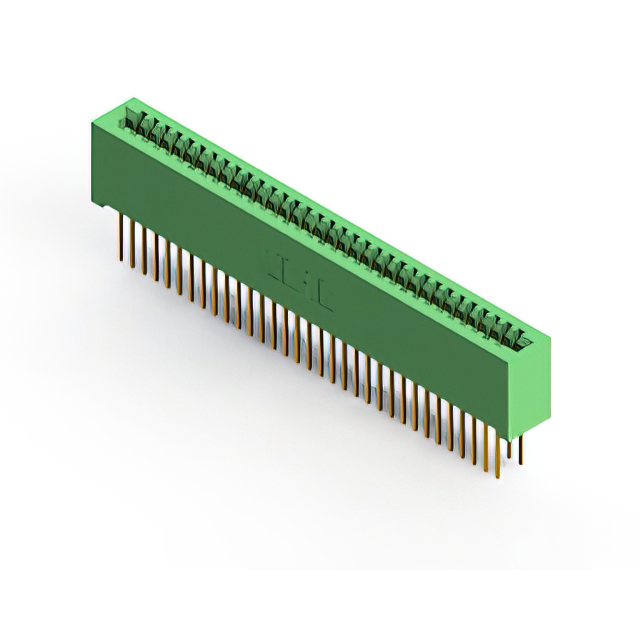

EDAC Inc. 342-066-541-201	Wire Wrap	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33

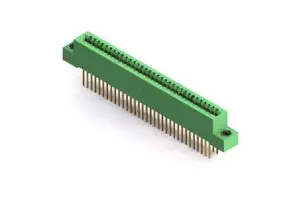

EDAC Inc. 342-066-541-207	Wire Wrap	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 342-066-558-212	Solder Wire Wrap	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole Right Angle	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "

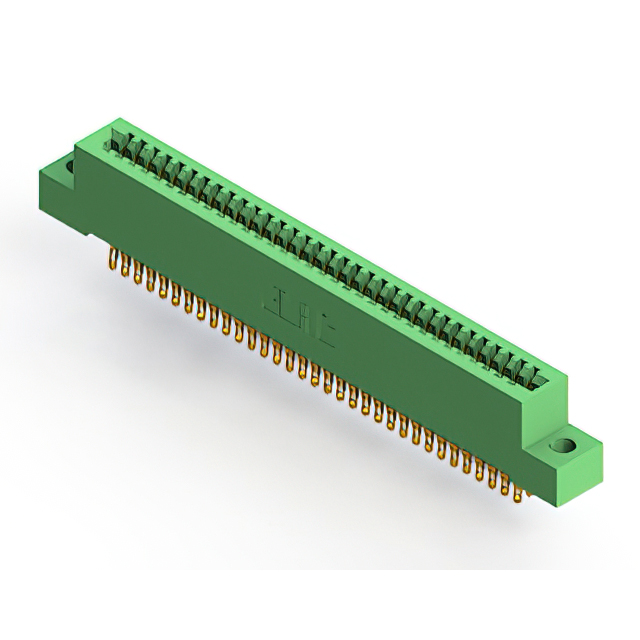

EDAC Inc. 342-066-555-204	Solder Eyelet(s)	Non Specified - Dual Edge	Polyester Thermoplastic	Board Edge Straddle Mount	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Card Extender

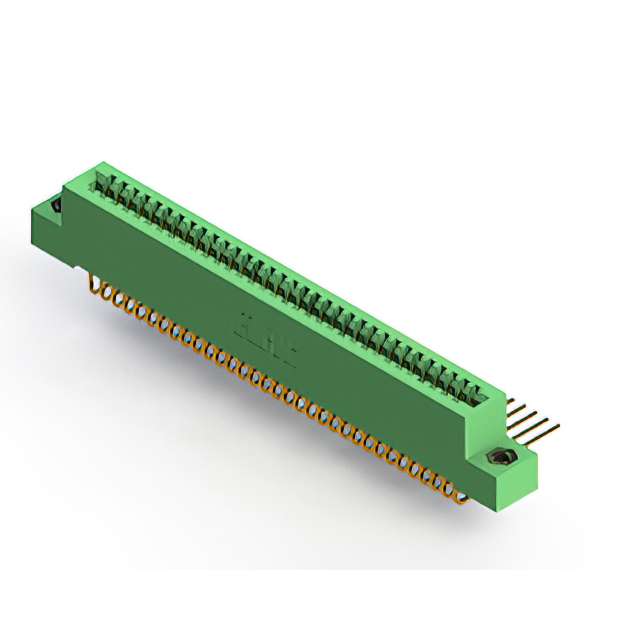

EDAC Inc. 342-066-559-208	Solder Wire Wrap	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole Right Angle	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 342-066-541-203	Wire Wrap	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Floating Bobbin Flush Mount	2.95 mm	0.116 in
EDAC Inc. 342-066-500-204	Solder Eyelet(s)	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in

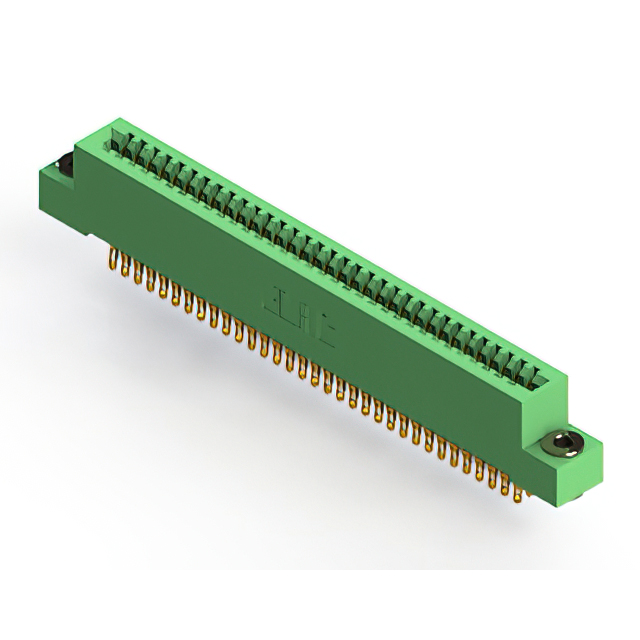

EDAC Inc. 342-066-555-203	Solder Eyelet(s)	Non Specified - Dual Edge	Polyester Thermoplastic	Board Edge Straddle Mount	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Floating Bobbin Flush Mount	2.95 mm	0.116 in	Card Extender

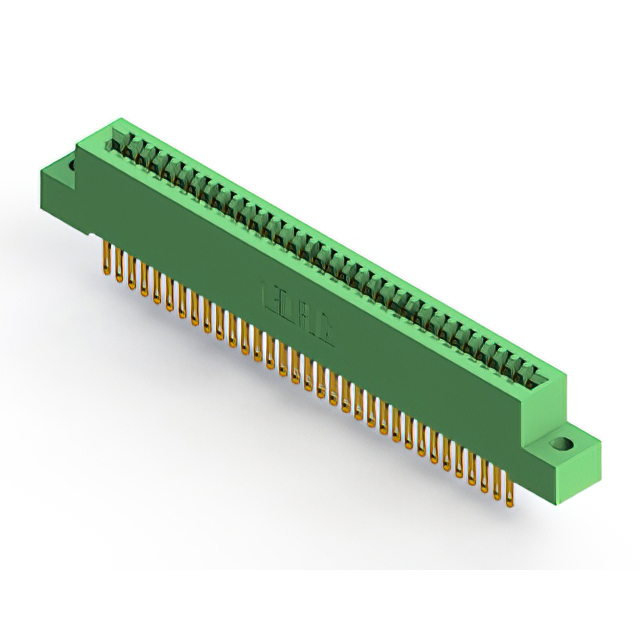

EDAC Inc. 342-066-500-202	Solder Eyelet(s)	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

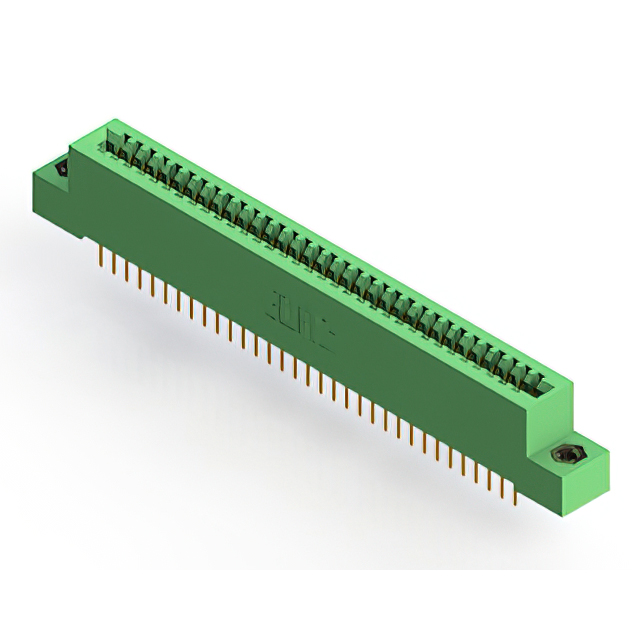

EDAC Inc. 342-066-524-208	Solder	Non Specified - Dual Edge	Polyester Thermoplastic	Through Hole	Cantilever	10 Áin	0.25 Ám	Dual	2	Gold	2	Green	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	66	-40 °C	105 ░C	Copper Alloy	Female	33	4-40 Flush Mount Threaded Insert Top Opening
