1986715 Series

Catalog

WIRE-TO-BOARD TERMINAL BLOCK, POWER, 15 MM, 4 POSITIONS, 20 AWG, 1 AWG, 3 MM², SCREW

Part	Screw Material - Plating	Positions Per Level	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Mounting Type	Contact Material - Plating	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Voltage	Features	Current	Screw Thread	Housing Material	Color	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Number of Levels	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 1986715-4	Nickel Plated Steel	4	1.8 LbIn	2.5 Nm	2.1 Nm	1.5 LbIn	Through Hole	Copper Alloy - Tin Plated	Tin Plated	Steel	600 V	Flange (Mounting)	130 A	M5	Polyamide (PA) Nylon	Green	Screw	-40 °C	110 °C	Horizontal with Board	20 AWG	1 AWG	1	0.591 in	15 mm

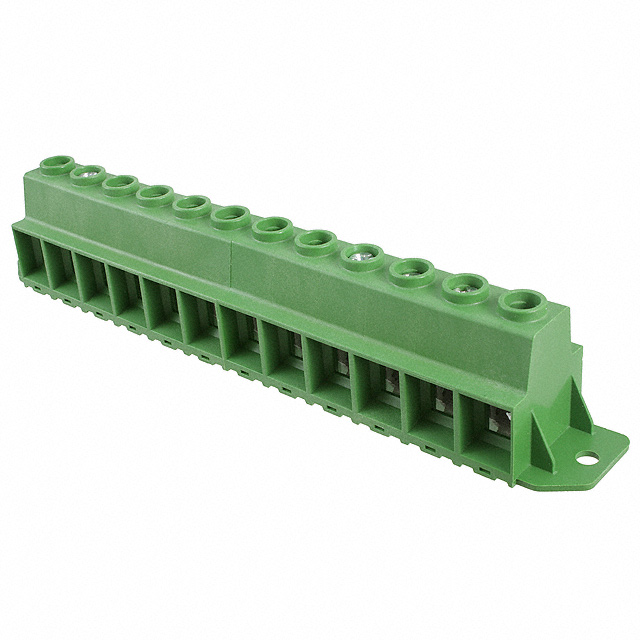

TE Connectivity Raychem Cable Protection 1-1986715-2	Nickel Plated Steel	12	1.8 LbIn	2.5 Nm	2.1 Nm	1.5 LbIn	Through Hole	Copper Alloy - Tin Plated	Tin Plated	Steel	600 V	Flange (Mounting)	130 A	M5	Polyamide (PA) Nylon	Green	Screw	-40 °C	110 °C	Horizontal with Board	20 AWG	1 AWG	1	0.591 in	15 mm
