3SU1150 Series

Manufacturer: Siemens

Catalog

SWITCH JOYSTICK DGTL 10A 500V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Switch Function	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - AC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Output	Ingress Protection	Contact Material	Current Rating (Amps)	Circuit	Reset Operation	Depth Behind Flange	Number of Positions	Angle of Throw	Contact Timing	Key Removable Positions	Contact Finish	Color - Actuator/Cap

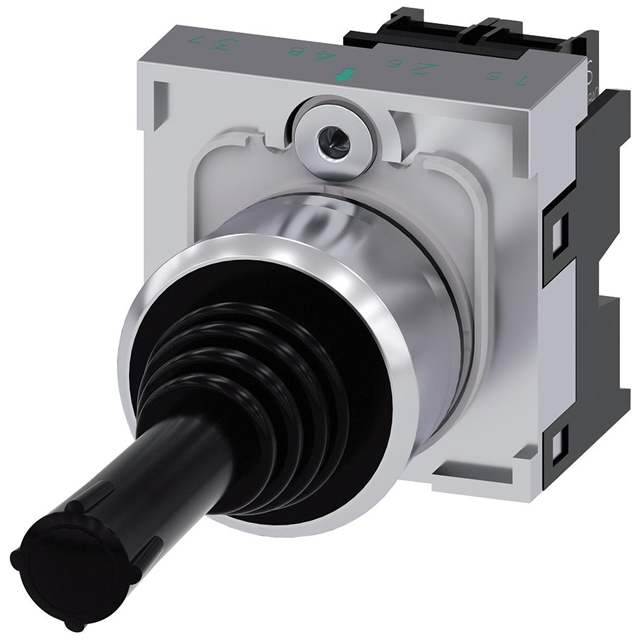

Siemens 3SU11507AB881NA0	10000000 Cycles	100000 Cycles	500 V	360° Directional	Panel Mount	Joystick 2 - Axis	22.3 mm	Joystick	500 V	Screw Terminal	-25 °C	70 °C	Digital (Mechanical Switch)	IP65 IP67	Silver Alloy	10 A

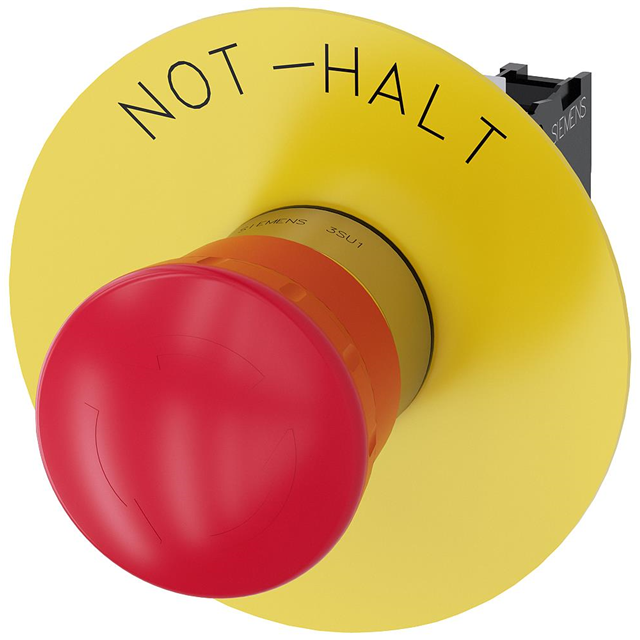

Siemens 3SU11501HB201CH0			500 V	On-Off	Panel Mount Front		22.3 mm		500 V	Screw Terminal	-25 °C	70 °C		IP66 IP67 IP69K		10 A	SPST-NC	Twist

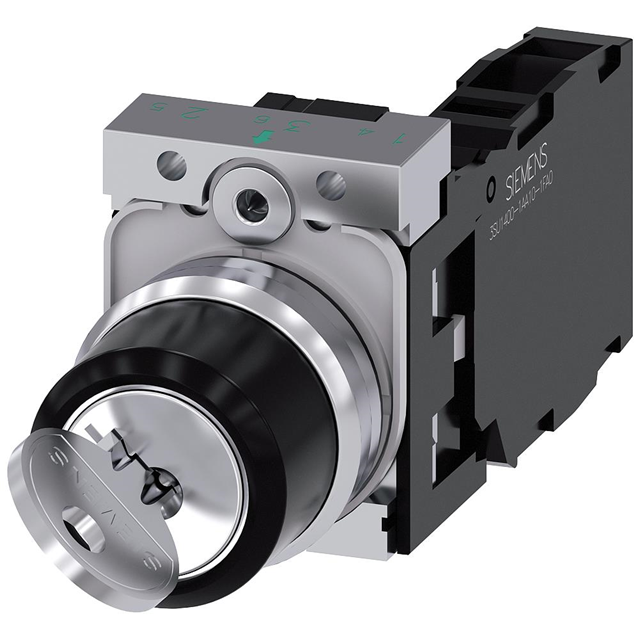

Siemens 3SU11504BF111FA0	10000000 Cycles	300000 Cycles	500 V	Off-On On-Off	Panel Mount		22.3 mm	Flat Key	500 V	Screw Terminal	-25 °C	70 °C			Silver Alloy	10 A	DPST-NO/NC		49.4 mm	2	90 °	Not Specified	All	Silver

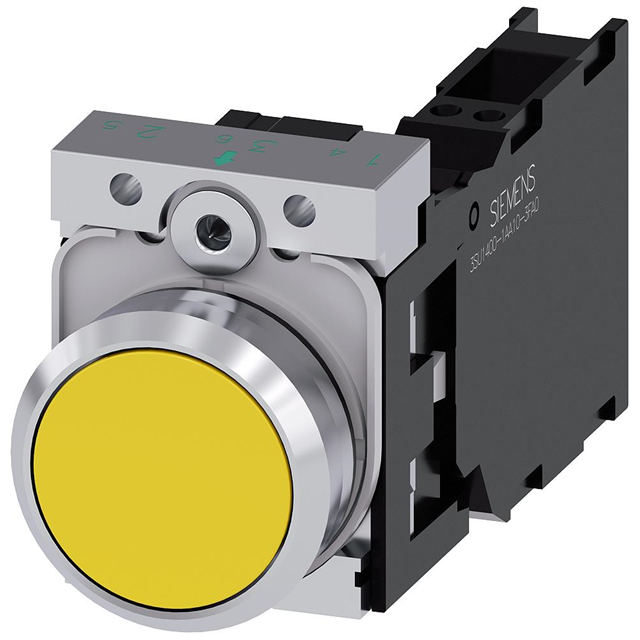

Siemens 3SU11500AB303FA0	10000000 Cycles	10000000 Cycles	500 V	Off-Mom On-Mom	Panel Mount Front	Standard	22.3 mm	Button Round	500 V	Spring Terminal	-25 °C	70 °C		IP66 IP67 IP69K		10 A	DPST-NO/NC								Yellow

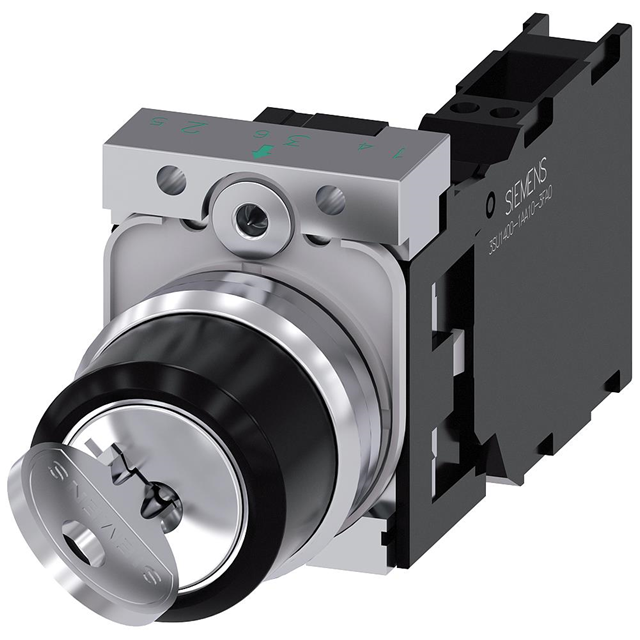

Siemens 3SU11504BF113FA0	10000000 Cycles	300000 Cycles	500 V	Off-On On-Off	Panel Mount		22.3 mm	Flat Key	500 V	Spring Terminal	-25 °C	70 °C			Silver Alloy	10 A	DPST-NO/NC		49.4 mm	2	90 °	Not Specified	All	Silver

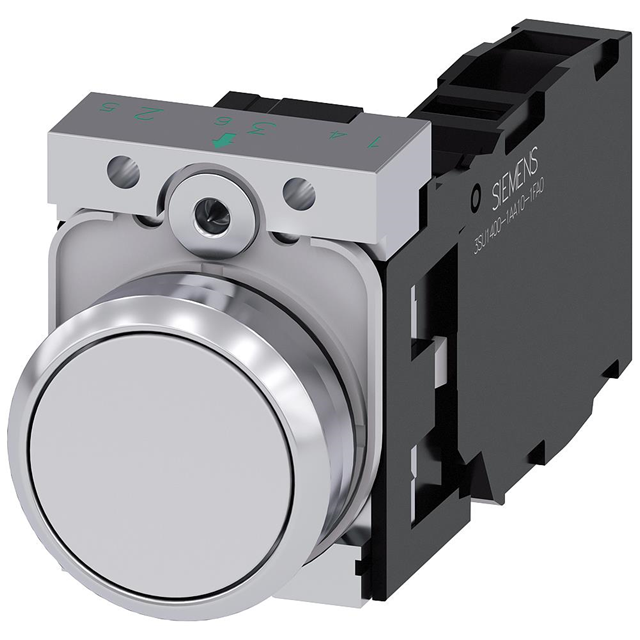

Siemens 3SU11500AB601FA0	10000000 Cycles	10000000 Cycles	500 V	Off-Mom On-Mom	Panel Mount Front	Standard	22.3 mm	Button Round	500 V	Screw Terminal	-25 °C	70 °C		IP66 IP67 IP69K		10 A	DPST-NO/NC								White

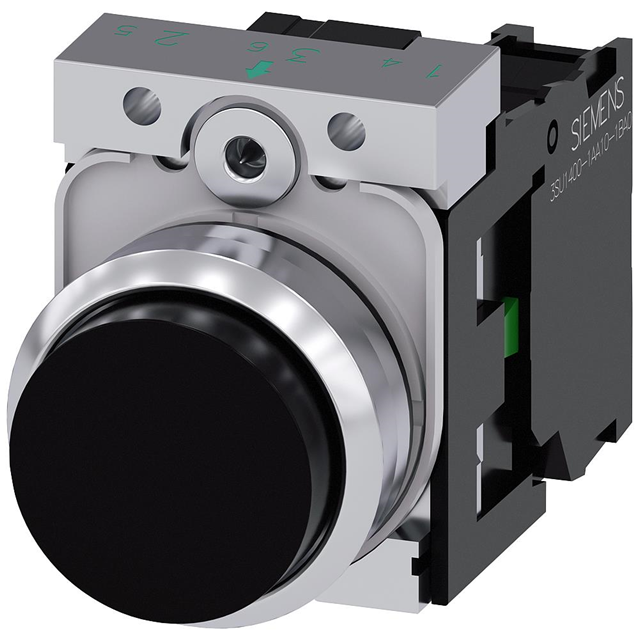

Siemens 3SU11500BB101BA0	10000000 Cycles	10000000 Cycles	500 V	Off-Mom	Panel Mount Front	Standard	22.3 mm	Button Round	500 V	Screw Terminal	-25 °C	70 °C		IP66 IP67 IP69K		10 A	SPST-NO								Black

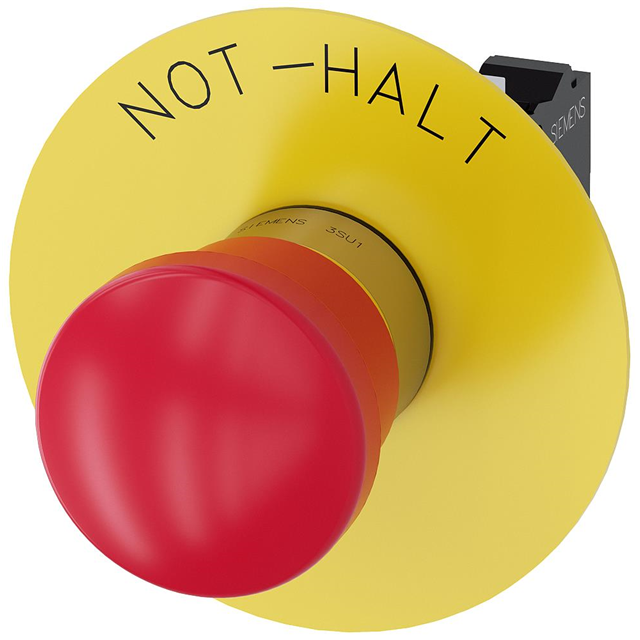

Siemens 3SU11501HA203PH0			500 V	On-Off	Panel Mount Front		22.3 mm		500 V	Spring Terminal	-25 °C	70 °C		IP66 IP67 IP69K		10 A	DPST-NC	Pull
Siemens 3SU11507BD881NA0	10000000 Cycles	500000 Cycles	500 V	360° Directional	Panel Mount	Joystick 2 - Axis	22.3 mm	Joystick	500 V	Screw Terminal	-25 °C	70 °C	Digital (Mechanical Switch)	IP65 IP67	Silver Alloy	10 A

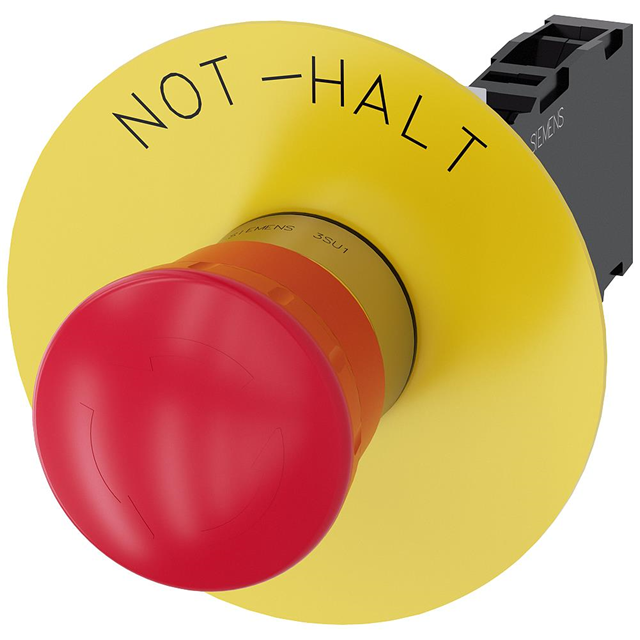

Siemens 3SU11501HB201FH0			500 V	Off-On On-Off	Panel Mount Front		22.3 mm		500 V	Screw Terminal	-25 °C	70 °C		IP66 IP67 IP69K		10 A	DPST-NO/NC	Twist
