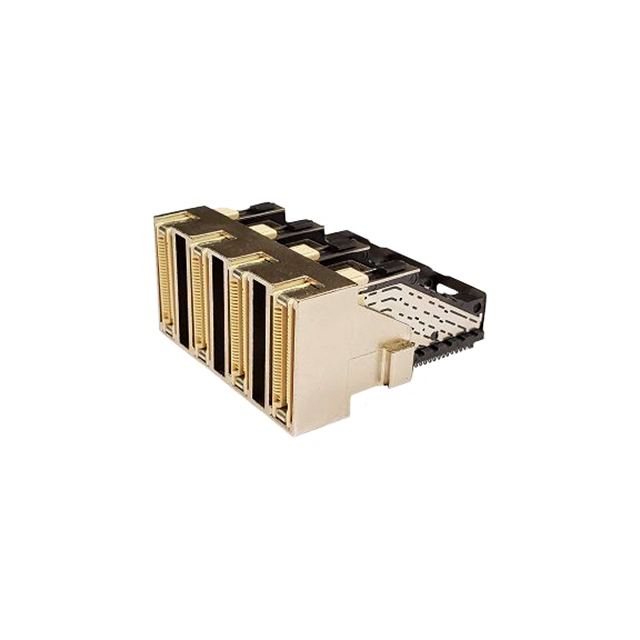

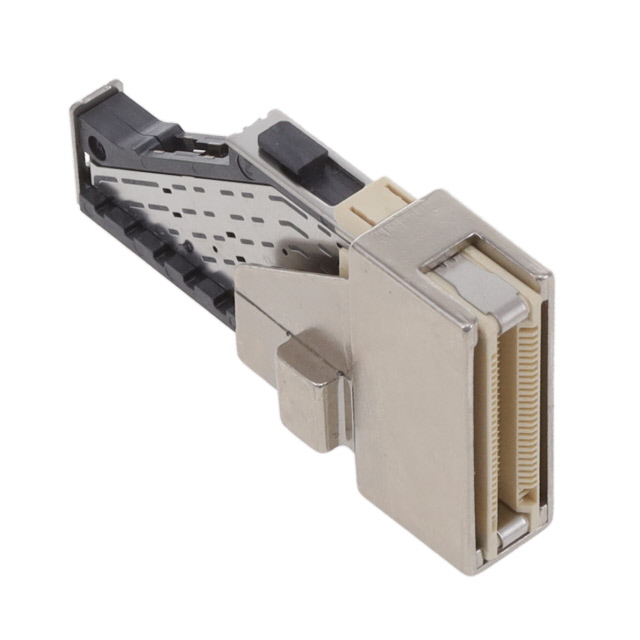

ME30056 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN EDGE DUAL FMALE 56POS 0.024
| Part | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Pitch | Pitch | Read Out | Card Thickness | Card Thickness | Gender | Contact Material | Contact Type | Mounting Type | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Contact Finish | Card Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Thermoplastic | 30 Áin | 0.76 Ám | 2 | 0.6 mm | 0.024 " | Dual | 1.57 mm | 0.062 in | Female | Copper Alloy | Cantilever | Right Angle Through Hole | 28 | -55 C | 105 ░C | Natural | Press-Fit | Gold | Non Specified - Dual Edge | 56 |
 Amphenol ICC (FCI) | Thermoplastic | 30 Áin | 0.76 Ám | 2 | 0.6 mm | 0.024 " | Dual | 1.57 mm | 0.062 in | Female | Copper Alloy | Cantilever | Right Angle Through Hole | 28 | -55 C | 105 ░C | Natural | Press-Fit | Gold | Non Specified - Dual Edge | 56 |
