5218559 Series
Manufacturer: DIALIGHT
Beta
⌘K

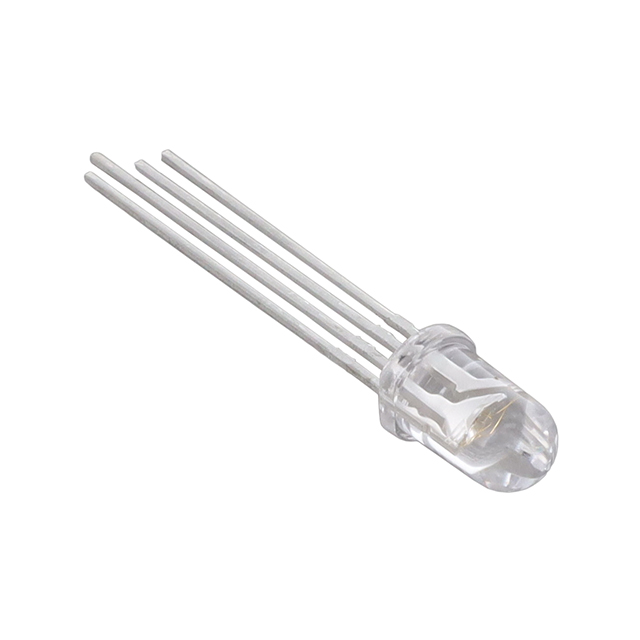

LED RGB CLEAR 5MM T/H
| Part | Color | Size / Dimension [diameter] | Package / Case | Wavelength - Dominant | Lens Size [diameter] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Viewing Angle | Lens Style | Lens Transparency | Configuration | Mounting Type | Supplier Device Package | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Current - Test | Height (Max) [Max] [z] | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | Blue Green Red | 5 mm | Radial - 4 Leads | 470nm Blue 525nm Green 625nm Red | 5 mm | 2500 mcd | 1450 mcd | 1900 mcd | 50 ° | Round with Domed Top | Clear | Common Anode | Through Hole | 5 mm | 525 nm | 470 nm | 634 nm | 20mA Blue 20mA Green 20mA Red | 8.6 mm | 2.2 V 3.2 V 3.3 V |
